Cincoze Embedded Computers

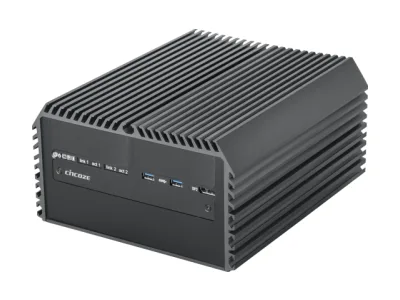

DS-1202

SKU: DS-1202

High-performance fanless embedded computer with 8th/9th Gen Intel Core processors, dual GbE LAN, versatile storage options, and dual PCIe/PCI expansion slots for advanced industrial computing and networking applications.

Key Specifications

CPU Type
Core i3/i5/i7, Pentium, Celeron
Chipset
Intel Q370
Memory
2× DDR4 SO-DIMM, non-ECC, up to 2666 MHz, max. 64 GB
CPU Socket Type
LGA1151
Storage Interface
2× 2.5" SATA +2 more
SATA RAID
RAID 0/1

The DS-1202 represents the pinnacle of expandability and performance in the DS-1200 series of fanless embedded computers. Powered by 8th/9th Generation Intel Core processors on the LGA1151 socket with the Intel Q370 chipset, it offers robust computing capabilities for the most demanding industrial applications. The system supports up to 64GB of DDR4 2400/2666MHz memory and provides versatile storage options including two 2.5" SATA drive bays, three mSATA slots, and an M.2 slot supporting both PCIe and SATA interfaces.

The DS-1202's most distinctive feature is its dual PCIe/PCI expansion slots, allowing for significant expansion possibilities and enabling the integration of multiple add-on cards for enhanced functionality. The system also includes dual GbE LAN ports (Intel I219-LM and I210), two USB 3.2 Gen2 ports, four USB 3.2 Gen1 ports, two USB 2.0 ports, and two RS-232/422/485 serial ports, providing extensive connectivity options. It supports triple independent displays through DVI-I and dual DisplayPort outputs, making it ideal for complex visualization requirements.

Built to operate in harsh industrial environments, the DS-1202 boasts a wide temperature range (-40°C to 70°C) and a robust form factor (227 x 128 x 261 mm). Its rugged construction, coupled with features such as Mini-PCIe and CMI expansion options, makes it an ideal solution for complex industrial automation systems, advanced transportation computing, and sophisticated IoT implementations where maximum expandability, performance, and reliability are essential.
