Versatile, high-performance fanless embedded computer with Intel Pentium N4200, dual GbE LAN, triple display support, and extensive I/O for advanced industrial and IoT applications.

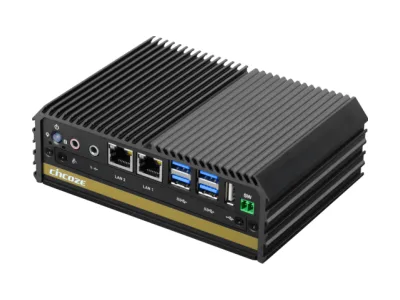

The DA-1100-N42 is a powerful and versatile fanless embedded computer designed for modern industrial applications. At its core is the Intel Pentium N4200 processor (up to 2.50GHz), delivering robust performance for demanding tasks. This system supports up to 8GB of DDR3L memory and offers flexible storage options with a 2.5" SATA drive bay or half-slim SSD and an mSATA slot.
A standout feature is its advanced networking capability, featuring dual Intel I210 GbE LAN ports for reliable, high-speed connectivity. The DA-1100-N42 boasts an extensive I/O set, including four USB 3.2 Gen1 ports, one USB 2.0 port, and two RS-232/422/485 serial ports. It supports triple independent displays through its DVI-I port and optional CMI modules, providing exceptional flexibility for multi-display industrial applications.
With an impressive operating temperature range (-40°C to 70°C) and a compact form factor (150 x 105 x 52.3 mm), the DA-1100-N42 is built to excel in harsh industrial environments. Its rugged design, combined with features like the optional CFM interface for expanded functionality (e.g., PoE), makes it an ideal solution for applications in industrial automation, edge computing, and as an advanced IoT gateway where performance, connectivity, and adaptability are essential.
Optional Module Configuration
| Model | Description | Slot 1 |
|---|---|---|
| CMI-COM102 | 2x RS232/422/485 | ✓ |
| CMI-DIO100 | 8x Optical Isolated DIO (4 in/4 out) | ✓ |
| CMI-LPPS102 | 1x LPT Port, 1x PS/2 | ✓ |
| CMI-DP101 | 1x DisplayPort | ✓ |
| CMI-DVI101 | 1x DVI-D Connector | ✓ |
| CMI-VGA101 | 1x VGA Port | ✓ |
| CMI-HD01 | 1x HDMI Port | ✓ |
| MEC-LAN-M102 | 2x GbE LAN Ports | ✓ |
