Versatile, high-performance fanless embedded computer with Intel Pentium N4200, dual GbE LAN, triple display support, and modular expansion for advanced industrial and in-vehicle applications.

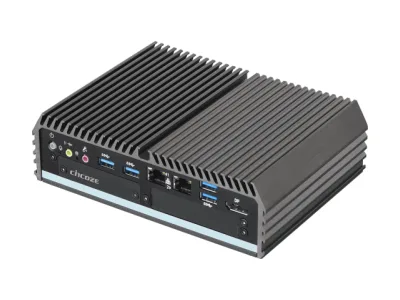

The DC-1200-N42 is a powerful and adaptable fanless embedded computer designed for modern industrial and in-vehicle applications. At its core is the Intel Pentium N4200 processor (up to 2.5GHz), delivering robust performance for demanding tasks. This system supports up to 8GB of DDR3L memory and offers flexible storage options with a 2.5" SATA drive bay and an mSATA slot, both supporting SATA 3.0 speeds.
A standout feature is its advanced networking capability, featuring dual Intel I210 GbE LAN ports for reliable, high-speed connectivity. The DC-1200-N42 boasts an extensive I/O set, including four USB 3.2 Gen1 ports and two RS-232/422/485 serial ports. It supports triple independent displays through its DVI-D port, DisplayPort, and optional CMI modules, providing exceptional flexibility for multi-display industrial applications.
With an impressive operating temperature range (-40°C to 70°C) and a compact form factor (185 x 56.5 x 131 mm), the DC-1200-N42 is built to excel in harsh industrial and vehicular environments. Its rugged design, combined with features like dual SIM card slots for network redundancy and the modular CMI interface for expanded functionality, makes it an ideal solution for applications in industrial automation, in-vehicle computing, and as an advanced IoT gateway.
The DC-1200-N42 also offers unique advantages with its support for optional CFM modules, enabling features like Power over Ethernet (PoE) and power ignition sensing. This adaptability, along with its E-mark certification and wide-range DC power input (9-48V), positions the DC-1200-N42 as a versatile and future-proof solution for a wide range of industrial and vehicular computing needs.
Optional Module Configuration
| Model | Description | Slot 1 | Slot 2 | Slot 3 |
|---|---|---|---|---|
| CMI-DVI101 | 1x DVI-D Connector | ✓ | ||
| CMI-VGA01 | 1x VGA Port | ✓ | ||
| CMI-HD02 | 1x HDMI Port | ✓ | ||
| CMI-COM03 | 2x RS232/422/485 | ✓ | ✓ | |
| CMI-DIO03 | 8x Optical Isolated DIO (4 in/4 out) | ✓ | ✓ | |
| MEC-COM-M212 | 2x COM Ports | ✓ | ||
| MEC-LAN-M102 | 2x GbE LAN Ports | ✓ | ✓ | |
| CFM-IGN02 | Power Ignition Sensing Control Function, Select 12V/24V | - | - | - |
| CFM-PoE02 | PoE Control Function, Individual Port 25.5W | - | - | - |
