2UP4 PICMG 1.0 2U Butterfly Backplane
- 2x PICMG 1.0 connector
- 4x PCI
- 3.3″ x 13.0″
- Expansion Slot Count
- 4, 2
- Expansion Slot Type
- PCI, PICMG
- Form Factor
- 2U
PICMG 1.0 Backplanes
ADEK offers a range of PICMG 1.0 backplanes, providing reliable solutions for industrial computing systems. These backplanes support a mix of legacy and modern interfaces.
Key features include:
- Various slot configurations (ISA, PCI, PCIe, PCI-X)
- Passive and active backplane options
- Robust design for industrial environments
- Long-term availability for extended system support
Our online listings show only a portion of our capabilities. We can often source or customize backplanes to meet specific needs not displayed here.
Need a particular configuration or advice? Contact us to discuss your PICMG 1.0 backplane requirements.
Showing 1–7 of 7 products
Products
HPE-5S2 PICMG 1.0 5-Slot Backplane
- 1x PICOe Slot
- 1x PCIe x4
- 3x PCI
- 4.22″ x 6.90″
- Expansion Slot Count
- 1, 3
- Expansion Slot Type
- PCIe, PCI
- Expansion Slot PCIe Lanes
- x4
PCI-10S PICMG 1.0 10-Slot Backplane
- 4x PICMG 1.0 connector
- 4x PCI
- 2x ISA
- 8.72″ x 10.40″
- Expansion Slot Count
- 4, 4
- Expansion Slot Type
- PCI, PICMG
- ISA Slot Count
- 2

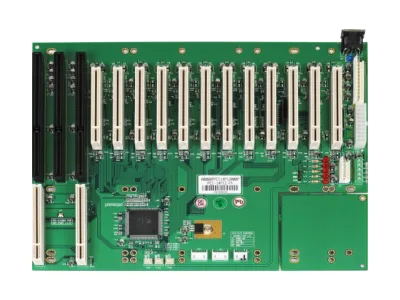

PCI-14P12 PICMG 1.0 14-Slot Backplane
- 2x PICMG 1.0 connector
- 12x PCI
- 1x ISA
- 10.2″ x 12.5″
- Expansion Slot Count
- 12, 2
- Expansion Slot Type
- PCI, PICMG
- ISA Slot Count
- 1

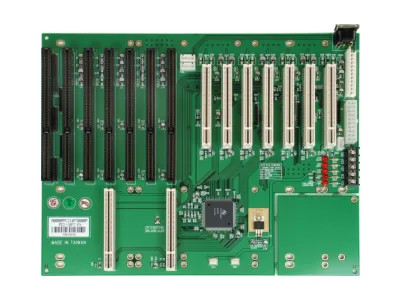

PCI-14P7 PICMG 1.0 14-Slot Backplane
- 2x PICMG 1.0 connector
- 7x PCI
- 5x ISA
- 10.2″ x 12.5″
- Expansion Slot Count
- 7, 2
- Expansion Slot Type
- PCI, PICMG
- ISA Slot Count
- 5
PCI-6S PICMG 1.0 6-Slot Backplane
- 2x PICMG 1.0 connector
- 4x PCI
- 1x ISA
- 5.24″ x 10.42″
- Expansion Slot Count
- 2, 4
- Expansion Slot Type
- PCI, PICMG
- ISA Slot Count
- 1
PX-10S PICMG 1.0 10-Slot Backplane
- 2x PICMG 1.0 connector
- 7x PCI
- 2x ISA
- 8.8″ x 10.4″
- Expansion Slot Count
- 2, 7
- Expansion Slot Type
- PCI, PICMG
- ISA Slot Count
- 2
