ITX-LV-67AD

LV-67A Industrial Mini-ITX Motherboard

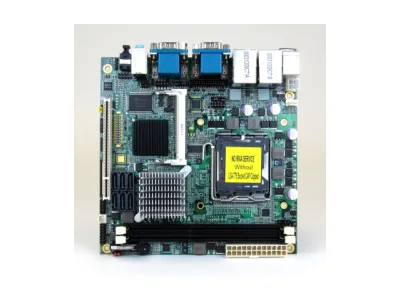

  • LV-67A Industrial Mini-ITX Motherboard Top
SKU: ITX-LV-67AD

Overview - LV-67A Industrial Mini-ITX Motherboard

The LV-67A industrial mini-ITX motherboard is a long-life board that incorporates an LGA775 socket with the Intel Q45 Express chipset.  Built-in Intel GMA graphics deliver integrated dual-display support.  This industrial board has a PCI slot, and a Mini-PCI socket for additional expansion requirements.  For storage requirements, the LV-67A offers 6 SATA II interfaces and supports board level RAID 0, 1, 5, and 10.  Intel Matrix Storage Technology is supported, which provides quicker access to applications and data under RAID 0 and 10 along with increased data protection against a drive failures under RAID 1, 5, and 10.

Dual LAN, 3 Rear Panel Serial Ports, VGA

Packing a lot of functionality into a small form factor, the LV-67A industrial mini-ITX motherboard has 3 serial ports on the rear panel, along with dual gigabit ethernet LAN.  This is a long-life board with high quality components that is perfect for industrial environments.

  • Socket 775 supports Core 2 Quad, Core 2 Duo, Celeron CPUs
  • Intel Q45 Express & ICH10DO chipsets
  • 800/1066/1333 MHz FSB
  • 2 x DDR3 Slots for up to 4 GB RAM
  • Integrated VGA
  • 2 x Gigabit ethernet LANs
  • Serial ATA, RAID, 4-USB ports, 1-PCI slot, more

Information & downloads

CPU Socket TypeLGA 775
ChipsetIntel Q45 Express
Channel SupportedDual Channel
CPU TypeCore 2 Quad / Core 2 Duo / Celeron D
Number of Memory Slots2x240pin
Memory Standard1066 / 800 DDR3 (non-ECC)
Maximum Memory Supported4GB
PCI1
Mini-PCI1
SATA 2.06
SATA RAID0 / 1 / 5 / 10
FDD1
Graphic ControllerIntel GMA 4500
VGA1
Audio ControllerRealtek ALC888 HD Audio Codec
Ethernet Controller2x Intel 82574L GbE LAN
PS/21x Keyboard, 1x Mouse
USB 2.04x rear, 4x internal
Serial4x COM (COM1-3 rear, COM4 internal)
Serial TypesCOM1 (RS-232/422/485 0V/5V/12V), COM2-4 (RS-232 0V/5V/12V)
Watchdog Timer256-level
GPIO8-bits (4x GPI, 4x GPO)
IrDA1
Power SupplyATX 24-pin, 12V 4-pin
Operating Temperature0-60 C
Storage Temperature-20-85 C
Regulatory ComplianceFCC, CE
