MS-98H9 Industrial ATX Motherboard

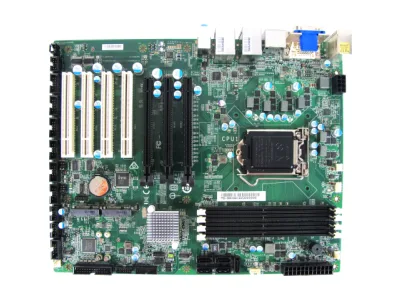

  • MS-98H9 Industrial Motherboard Top
  • MS-98H9 Industrial Motherboard Rear Panel
SKU: MS-98H9

MS-98H9 Industrial Motherboard

The MS-98H9 industrial motherboard is a long-life ATX motherboard with 4x 32-bit PCI slots, 2x PCIe x4 and 1x PCIe x16 slots. This motherboard is based on the Skylake architecture, accepting Generation 6 & 7 LGA 1151 Intel processors. The well-established Intel Q170 chipset allows for features such as Intel Rapid Storage Technology and Intel AMT.

On-Board Dual DisplayPort, DVI-I, HD Audio, USB 3.0, Dual LANs

The MS-98H9 industrial motherboard has multiple on-board features commonly sought after on an industrial board. Dual DisplayPorts and DVI to take advantage of Intel HD graphics, HD audio, and dual gigabit LANs are all incorporated right on the rear panel.

  • Supports Generation 6 & 7 Core i3, i5 & i7 Processors
  • Intel Q170 Chipset
  • 4 x DDR4 2133 MHz Memory Sockets up to 64 GB RAM
  • Dual DisplayPort, VGA AND DVI-I ports
  • 5 x SATA 3
  • On-board RAID 0, 1, 5, 10
  • Dual Gigibit LANs
  • 6 x USB 3.0 (4 rear, 2 internal)
  • 6 x USB 2.0 (2 rear, 4 internal)
  • 1 x PCIe x16, 2 x PCIe x4, 4 x PCI slots
  • 6 x COM (4 x RS-232, 2 x RS232/422/485), 1 x LPT, PS/2

Information & downloads

CPU Socket TypeLGA 1151
ChipsetIntel Q170
Channel SupportedDual Channel
CPU TypeCore i7 / i5 / i3 / Pentium / Celeron
Number of Memory Slots4x288pin
Memory Standard2133 DDR4 (non-ECC)
Maximum Memory Supported64GB
PCIe 3.0 x161
PCIe 3.0 x42
PCI4
Mini-PCIe2
SATA 3.05
mSATA1
SATA RAID0 / 1 / 5 / 10
Graphic ControllerIntel HD Graphics
VGA1
DVI-D1
DisplayPort2
Display Mode3x independent
Audio ControllerRealtek ALC887 HD Audio Codec
Ethernet Controller1x Intel I219-LM GbE LAN PHY, 1x Intel I210-AT GbE LAN
PS/21x Keyboard/Mouse
USB 3.04x rear, 2x internal
USB 2.02x rear, 4x internal
Serial6x COM (COM1-6 internal)
Serial TypesCOM1-2 (RS-232/422/485 0V/5V/12V), COM3-6 (RS-232 0V/5V/12V)
Parallel1
Watchdog Timer256-level
TPM1x box header
Super I/O ControllerFintek F81866AD-I
GPIO8-bits (4x GPI, 4x GPO)
Smart FanYes
Power SupplyATX 24-pin, 12V 8-pin
Operating Temperature-10-60 C
Operating Humidity10-90% non-condensing
Storage Temperature-20-80 C
Storage Humidity10-90% non-condensing
Regulatory ComplianceFCC, CE, RCM, VCCI, BSMI (Class B)
