ITX-MB-850F

MB-850 Industrial Mini-ITX Motherboard

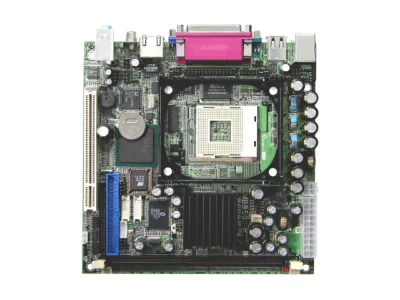

  • MB-850 Industrial Mini-ITX Motherboard Top
  • MB-850 Industrial Mini-ITX Motherboard Rear Panel
SKU: ITX-MB-850F

Overview - MB-850 Industrial Mini-ITX Motherboard

The MB-850 industrial mini-ITX motherboard is a Socket 478 board using the Intel 845GV chipset.  Compatible with Pentium 4 and Celeron processors, this motherboard is composed of high quality components intended for long-life operation.  Integrated graphics are implemented via the Intel 82845GV controller.  Because of the PCI slot, multiple COM ports, and parallel port, this industrial board may be a perfect fit for your legacy hardware requirements.

Rear Panel Serial, VGA, LPT, COM, and LAN

This industrial mini-ITX motherboard offers a lot of functionality right off the rear panel, which allows the few slots available in a smaller form factor chassis to be used for your hardware.  As a result there are 2 USB 2.0 ports, a serial and parallel port, VGA, ethernet LAN, keyboard/mouse, and audio connectors on the rear panel.  In addition, if you require more there are 2 additional USB 2.0 header, and 3 more serial headers to expand.  Lastly, the MB-850 has 2 IDE interfaces and supports up to 2 floppy disk drives.

  • Socket 478 for Pentium IV
  • Intel 845GV Chipset
  • 400/533 MHz FSB
  • 1-DDR DIMM socket up to 1 GB
  • Integrated VGA
  • Integrated LAN
  • Up to 4-USB ports, 4-serial ports, 1-PCI slot

Information & downloads

CPU Socket TypeSocket 478
ChipsetIntel 845GV
Channel SupportedSingle Channel
CPU TypePentium 4 / Pentium 4M
Number of Memory Slots1x184pin
Memory Standard333 / 266 / 200 DDR (non-ECC)
Maximum Memory Supported1GB
PCI1
IDE2 (1x 40pin box header, 1x 44pin header)
FDD2
Graphic ControllerIntel Extreme Graphics
VGA1
Audio ControllerRealtek ALC650 Audio Codec
Ethernet ControllerRealtek 8100BL FE LAN
PS/21x Keyboard, 1x Mouse
USB 2.02x rear, 2x internal
Serial4x COM (COM1 rear, COM2-4 internal)
Serial TypesRS-232 0V/5V/12V
Parallel1
Watchdog Timer256-level
Super I/O ControllerWinbond 83627HF
GPIO8-bits (4x GPI, 4x GPO)
IrDA1
Power SupplyATX 20-pin, 12V 4-pin
Operating Temperature0-60 C
Operating Humidity10-90% non-condensing
Storage Temperature-20-80 C
Storage Humidity10-90% non-condensing
