AD-608-10

For use with a 10-slot backplane, the AD-608-10 industrial computer is a compact system ideal for applications where small size is important. It accepts a standard size power supply capable of delivering power for the most demanding applications. Our 10-slot chassis provides exceptional expansion capability for full length add-on cards. These systems are designed for industrial environments with their superior cooling and a removable and washable air filter.

Features

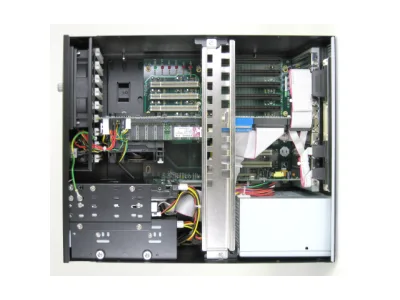

• Accepts full length add-on cards
• Wall/panel mountable or table top use
• External bays: 2 x 3.5", 1 x 5.25"
• Large 120 mm fan with washable filter for exceptional cooling even in dusty industrial environments
• Accepts standard PS2 size power supply for costeffectiveness and flexible power requirements

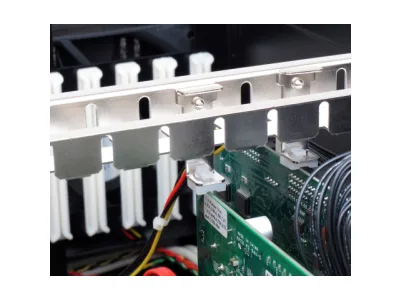

• Hold-down bracket keeps internal boards secure
• Two front-mounted USB ports (expandable in rear)
• Front Panel: Power switch, reset switch, LEDs for Power On/Off and HDD activity
• Dimensions: 13" x 6.9" x 16.2" D
• Weight: 15.4 lbs, case only

ADEK computers are custom manufactured to meet your specific requirements. All images represent typical configurations. Please contact us with your requirements and we will respond with a quote within 24 hours.
