AD-581

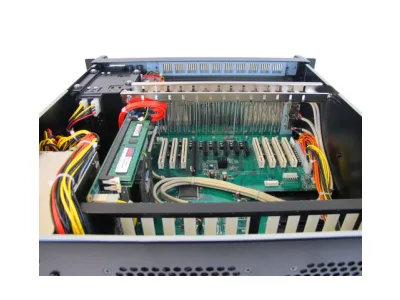

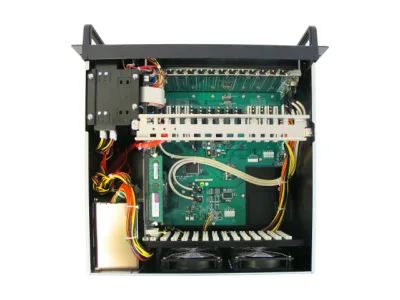

If you require front access to all the ports on your computer, the ADEK AD-581 is for you! It is a 4U instrumentation rack mount computer offering up to 14-slots with all slots facing the front of the computer. This provides excellent convenience for fast access to all the slots found at the rear of most ordinary rack mount computers. It's perfect for applications that require instrument testing and easy access to their connections. In addition, all ports are accessible from the front including serial, parallel, USB, audio and other ports.

The front of the computer incorporates filtered vents that stretch the full width of all slots. This is further enhanced by the addition of two 120mm fans that keep the air flowing around all internal boards and components.

Features

• Accepts up to 14-slot PICMG backplanes
• All 14-slots accept full length boards
• All steel and aluminum construction
• External bays: 1 x 5.25"
• Internal bays: 1 x 3.5"
• Dual 120mm fans keep system components cool
• Front port headers include six USB, two RS-232, one parallel and audio
• Adjustable lock-down clamps protect add-on cards against vibration
• Dimensions: 16.80" W x 6.97" H x 17.70" D

ADEK computers are custom manufactured to meet your specific requirements. All images represent typical configurations. Please contact us with your requirements and we will respond with a quote within 24 hours.
