AD-291

2U Industrial Rack Mount Computer

×Full size product image

SKU: AD-291

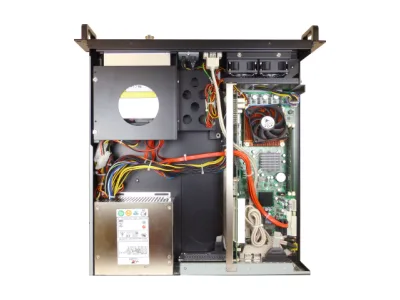

The AD-291 2U industrial rack mount computer may be only 2U high, but it incorporates 6-slots enabling the AD-291 to accept a variety of single board computers and other PCI/ISA cards. The locking front door protects both floppy and CD-ROM drives in harsh environments, while the built-in fan keeps things cool. The design of the AD-291 allows for horizontal installation of full-size single board computers and room for add-on cards. Its an excellent choice when you need a compact computer that's big on performance and convenience.

Features

  • 2U chassis height
  • Accepts up to 6-slot backplanes
  • External bays: 1 x 3.5", 1 x 5.25″
  • Internal bays: 1 x 3.5"
  • Removable "wings" for rack or desktop operation
  • Front door protects disk drives
  • Front panel supports keylock and power switch, reset button & dual USB
  • Dual ball-bearing fans with filters keep things cool
  • Supports PS/2 power supplies
  • Shock: 10 G acceleration peak to peak (11 ms)
  • Vibration: 5~17Hz, 0.1" double amplitude displacement; 17~640Hz, 1.5 G acceleration peak to peak
  • Dimensions: 18.9" W x 3.4" H x 17.1" D

ADEK computers are custom manufactured to meet your specific requirements. All images represent typical configurations. Please contact us with your requirements and we will respond with a quote within 24 hours.
