ADEK 306-B Chassis

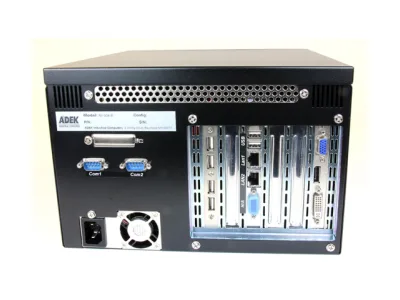

ADEK 306-B Chassis - main ADEK 306-B Chassis - image 2 ADEK 306-B Chassis - image 3 ADEK 306-B Chassis - image 4 ADEK 306-B Chassis - image 5
Panel Mount Computer Cases

ADEK 306-B Chassis

SKU: 306-B

Up to six slots are available to provide you with the right add-on boards for your application. Additional video, extra LANs, USB, and other add-on technology is available. An optional flange with rubber gasket is available for mounting inside a wall or panel. The configuration illustrated above incorporates a slimline DVD-RW and dual removable 2.5" hard drives. We can build a variety of confi gurations to accommodate your exact requirements. The 306-B accepts up to 6-slot backplanes in several different slot configurations. We can build your 306-B system to meet your exact requirements.

Features and Specifications

  • Accommodates up to 6-slot backplanes in a variety of slot configurations (accepts up to 3/4 length boards)
  • One 80 mm cooling fan with removable filter
  • One 5.25" bay for one slimline DVD/RW drive with up to two 2.5" removable hard drives, or one 3.5" internal hard drive
  • Power and hard drive indicators
  • AC and DC power versions available
  • Two front USB ports with room for more on rear
  • Potential for serial and parallel ports on rear
