Transportation Computers
Fanless Transportation Computers That Run -40°C to 70°C, Rail to Roadside
EN 50121-3-2, EN 50155, and E-Mark rated models for roadside ITS cabinets, tolling lanes, passenger information systems, and rail wayside — configured in New Hampshire and backed by 30+ years in industrial computing.
- -40°C to 70°C fanless operation
- 9–48 VDC wide-range power input
- EN 50155, EN 50121-3-2, E-Mark rated models
- Dual SIM (DI/DS models) + Mini-PCIe/M.2 expansion
- 50 Grms shock, 5 Grms vibration (DS-1202)
Request a Quote
Tell us your application — a US-based engineer will reply within one business day.
Which Transportation Computer Fits Your Installation?
Four fanless Cincoze platforms covering roadside cabinets, tolling lanes, passenger information, and control rooms — every model rated -40°C to 70°C on 9–48 VDC input.
E-Mark

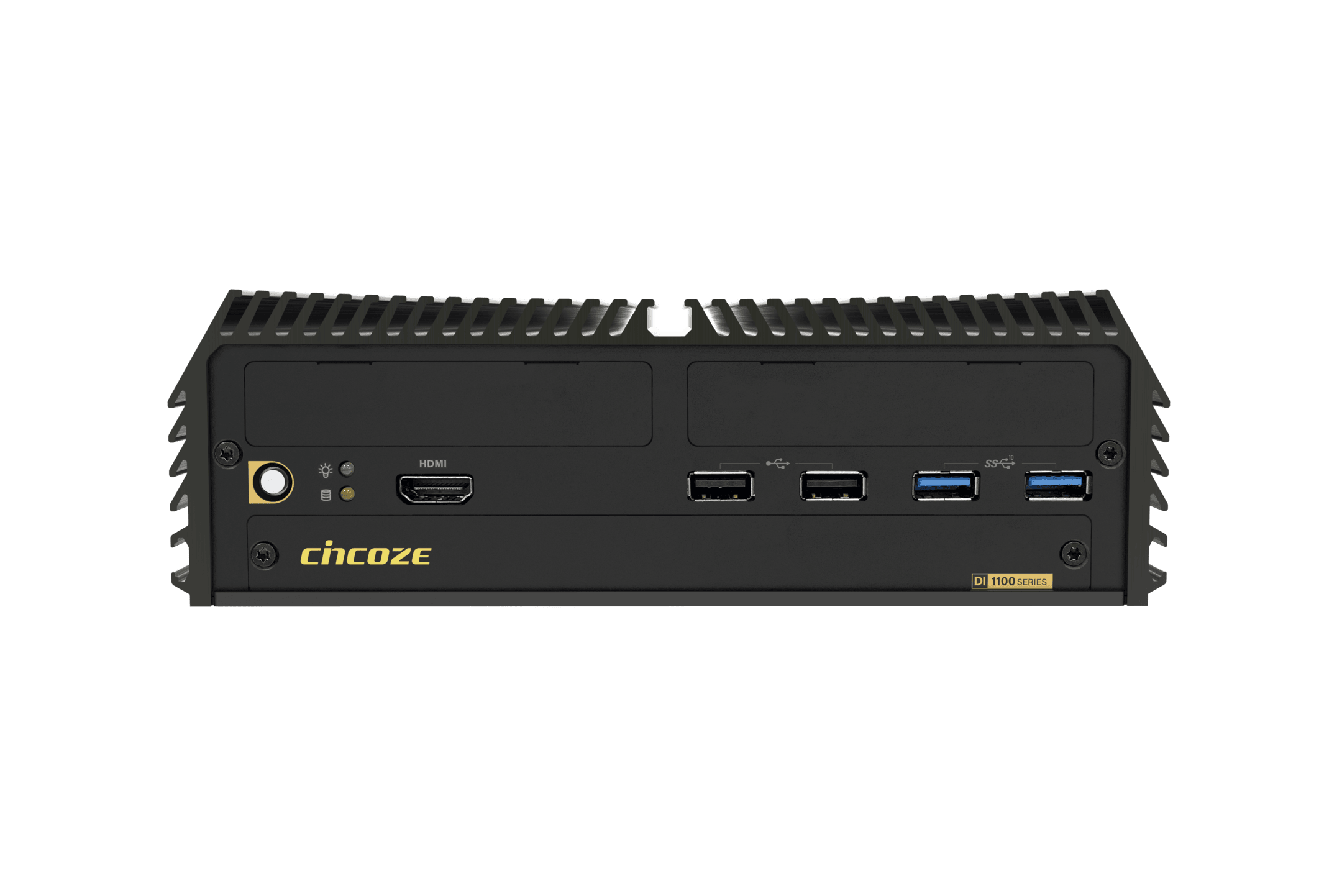

Cincoze DI-1100-i7
Compact, power-saving node for roadside ITS cabinets, signal control, and telemetry gateways.
- Intel Core i7-8665UE, 4 cores, 15 W TDP
- -40°C to 70°C fanless
- 2× GbE, 2× RS-232/422/485, 6× USB
- 2× SIM slots + 2× Mini-PCIe
MIL-STD-810H

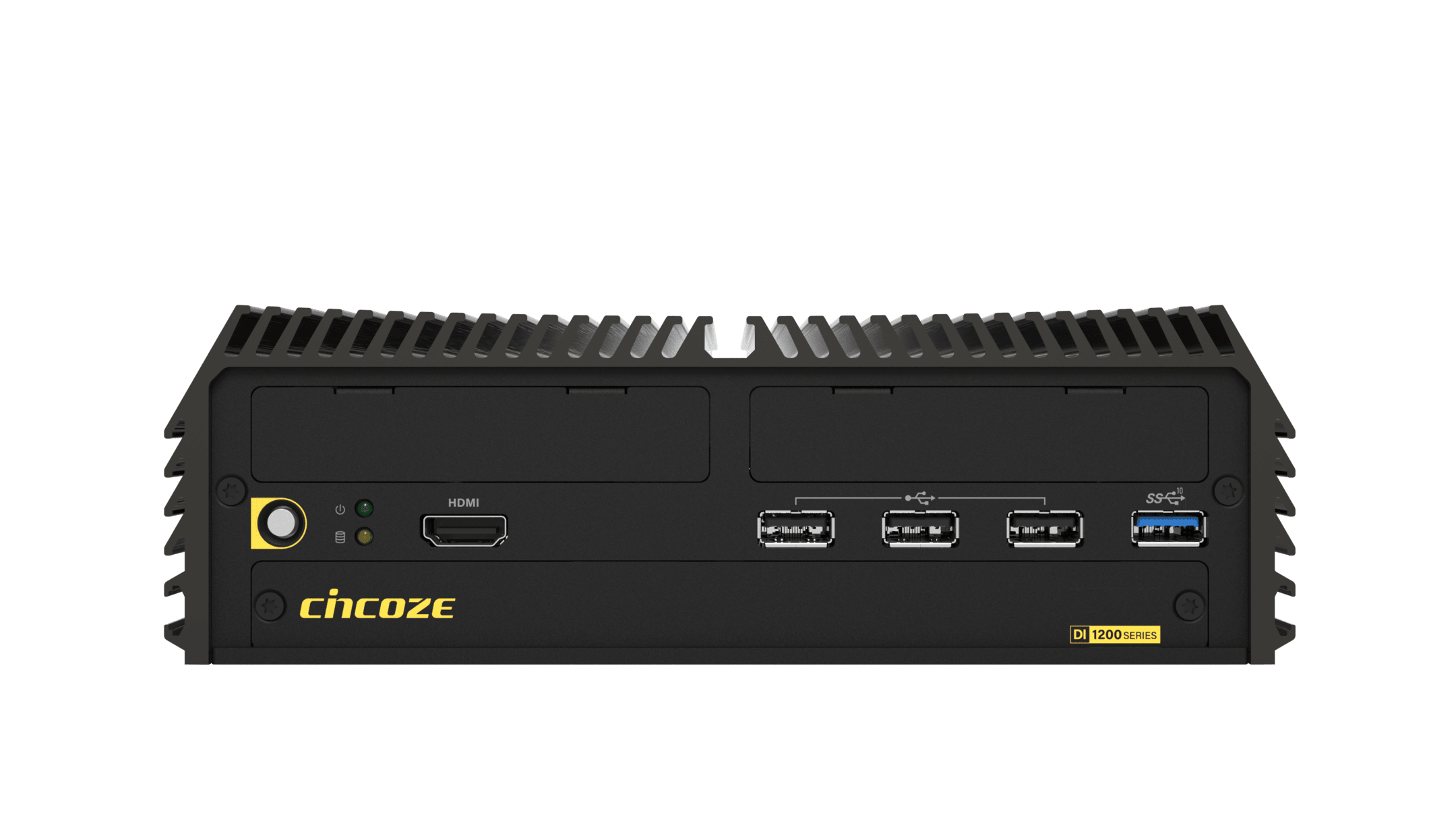

Cincoze DI-1200-i5
12th Gen node that drives four independent displays — built for passenger information systems.
- Intel Core i5-1245UE, 10 cores, 15 W TDP
- -40°C to 70°C at 100% load, fanless
- 2× 2.5GbE LAN, 4× displays (3840×2160)
- EN 50155, EN 50121-3-2, E-Mark
EN 50155

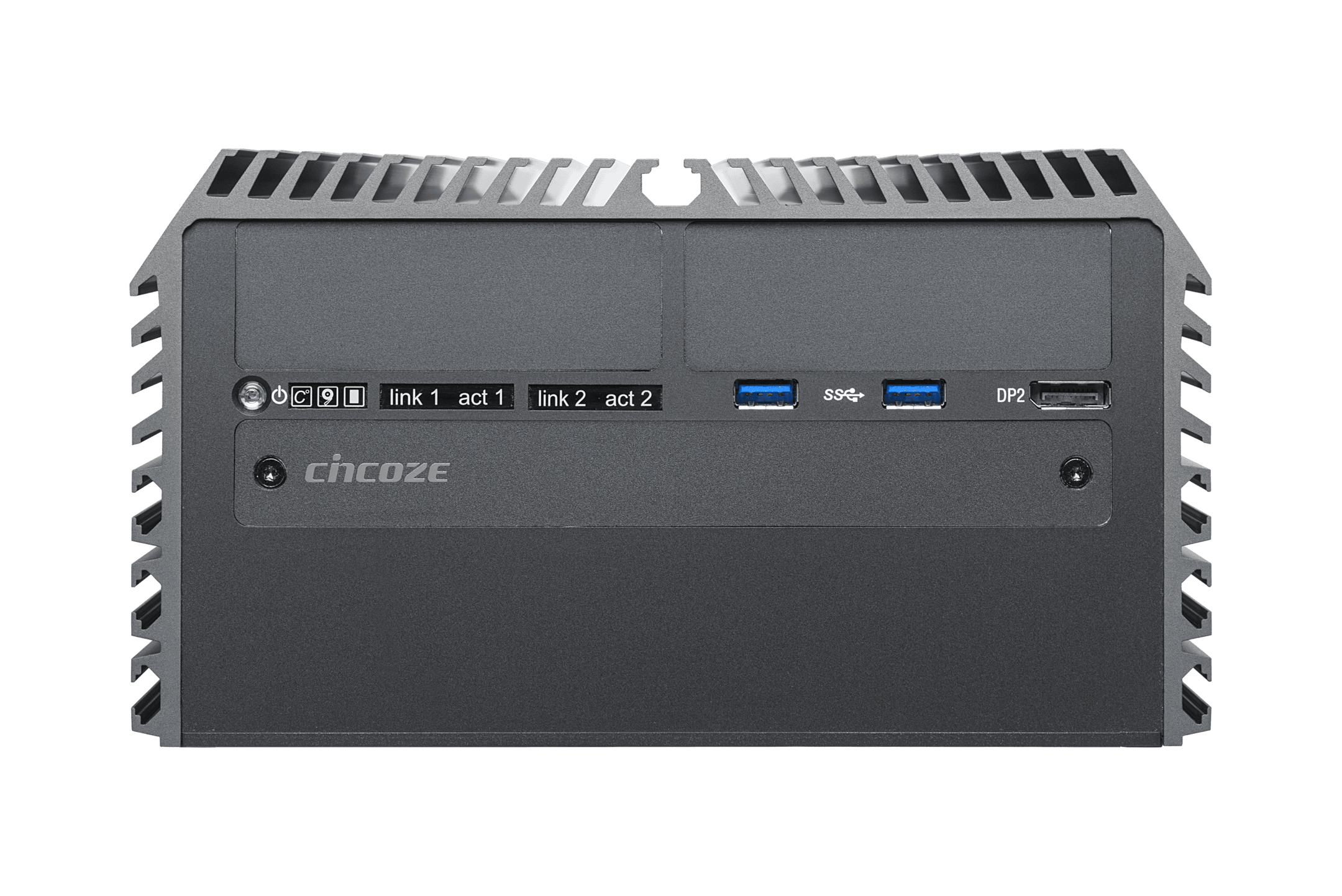

Cincoze DS-1202
PCIe-expandable workhorse for tolling and ANPR lanes that need frame grabbers or capture cards.
- 8th/9th Gen Intel Core (LGA1151 socket)
- 2× PCIe/PCI slots + 3× Mini-PCIe
- 50 Grms shock, 5 Grms vibration
- -40°C to 70°C fanless (35 W TDP)
EN 45545-2

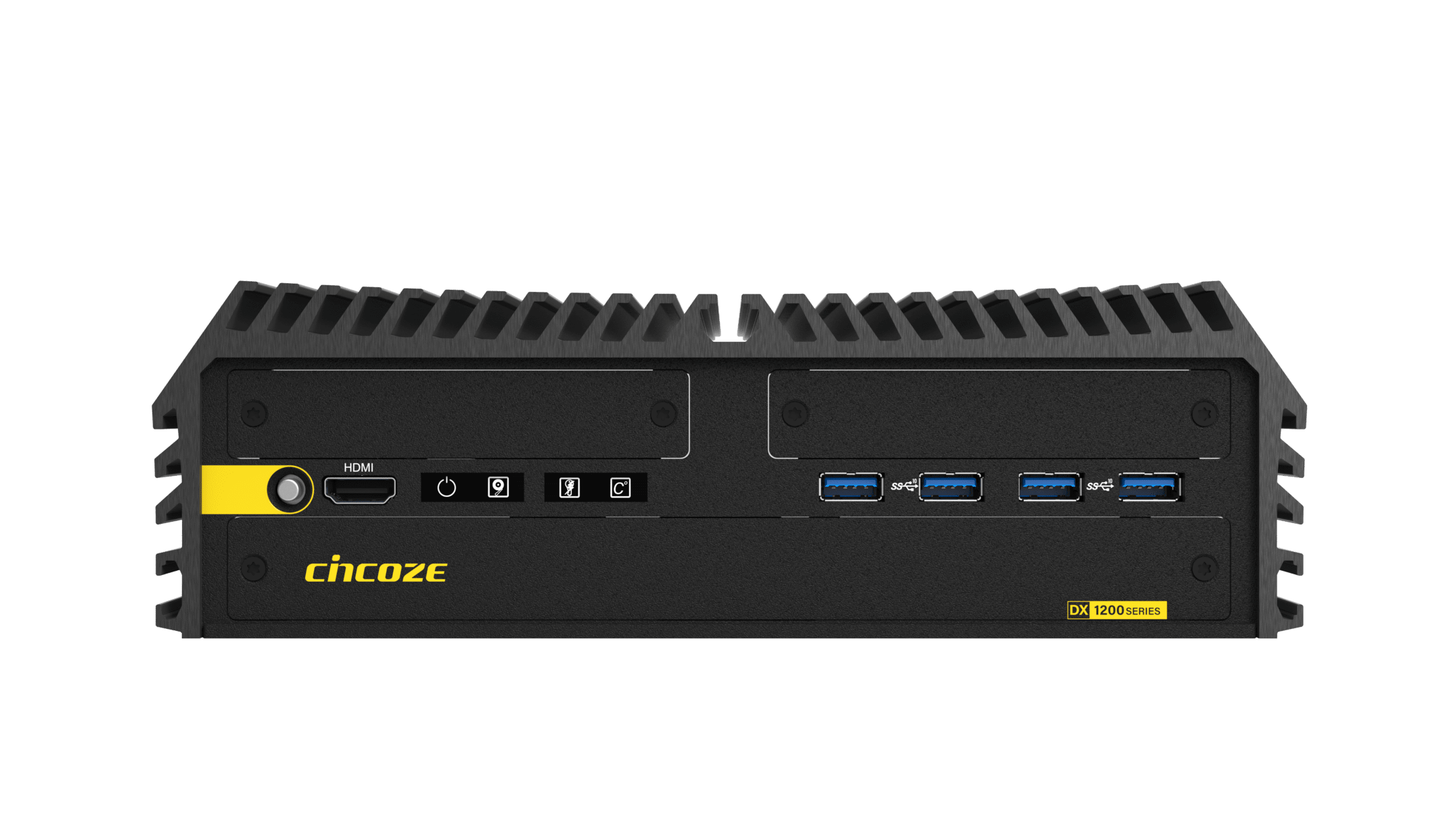

Cincoze DX-1200
Workstation-class compute with hot-swap RAID storage for traffic management and multi-camera recording.
- 12th/13th Gen Intel Core, up to Core i9
- Up to 96 GB DDR5, ECC support
- 2× hot-swap 2.5" bays, RAID 0/1/5/10
- -40°C to 70°C fanless (35 W TDP)
Transportation Applications
Roadside ITS & Signal Cabinets
DIN-rail and wall-mount nodes that ride out cabinet heat and winter cold without fans or filters.
Tolling & ANPR Lanes
PCIe/PCI slots on the DS-1202 take the frame grabbers and capture cards lane systems depend on.
Passenger Information Displays
One DI-1200-i5 drives up to four independent displays at stations, stops, and terminals.
Rail Wayside & Trackside
EN 50121-3-2 EMC-rated models for monitoring and signaling equipment near the track.
Depot & Yard Operations
Optional ignition sensing (CFM module, 12V/24V selectable) for service vehicles and yard equipment.
Transit Surveillance & Recording
Hot-swap RAID storage on the DX-1200 records multiple camera streams at stations and park-and-rides.
Built for Transportation Duty
Certified for the Transportation Environment
Transportation electronics live next to traction power, radios, and vehicle electrical systems. All four models on this page carry EN 50121-3-2 (railway EMC) and EN 50155 (rolling-stock electronics); the DI-1100-i7, DI-1200-i5, and DX-1200 add E-Mark vehicle approval, and the DX-1200 carries EN 45545-2 railway fire-protection compliance.
Power is engineered for the same reality: 9–48 VDC wide-range input with over-voltage, over-current, and reverse-power protection on every unit, plus optional ignition sensing for vehicle-fed installations.
One Box Behind Every Passenger Information Display
Passenger information runs around the clock in unconditioned spaces. The DI-1200-i5 drives up to four independent displays at 3840×2160 from a 15 W, 10-core CPU and holds -40°C to 70°C at 100% processor load without a fan. Dual SIM slots plus an M.2 B-key socket accept a cellular modem card for stops where wired backhaul never arrives.
Need recording alongside display duty? The DX-1200 adds 8× USB 3.2, 4× RS-232/422/485, and RAID-protected hot-swap storage.
Expansion Without a Second Enclosure
Roadside and wayside cabinets rarely have room for a second box. Mini-PCIe and M.2 sockets take cellular, Wi-Fi, and GPS cards inside the chassis, and Cincoze CMI/CFM modules add I/O such as power ignition sensing (12V/24V selectable) without redesigning the enclosure.
- DI-1100-i7: 2× Mini-PCIe, 2× SIM slots
- DS-1202: 2× PCIe/PCI slots, 3× Mini-PCIe, 2× SIM slots
- DX-1200: 2× Mini-PCIe, M.2 E-key, 1× SIM slot
DIN-rail, VESA, and wall mounting are standard on the DI and DX models shown here, and every unit runs from 9–48 VDC.
Compare the Four Platforms
| Spec | DI-1100-i7 | DI-1200-i5 | DS-1202 | DX-1200 |
|---|---|---|---|---|
| CPU | Core i7-8665UE (4 cores, 15 W) | Core i5-1245UE (10 cores, 15 W) | 8th/9th Gen Core, LGA1151 socket | 12th/13th Gen Core, up to i9 |
| Max Memory | 32 GB DDR4 | 32 GB DDR5 | 64 GB DDR4 | 96 GB DDR5 (ECC) |
| LAN | 2× GbE | 2× 2.5GbE | 2× GbE | 2× GbE |
| Independent Displays | 3 | 4 | 3 | 4 |
| Expansion | 2× Mini-PCIe | M.2 B-key + E-key | 2× PCIe/PCI + 3× Mini-PCIe | 2× Mini-PCIe + M.2 E-key |
| Storage | 1× 2.5" bay + mSATA | 1× 2.5" hot-swap + M.2 | 2× 2.5" bays + 3× mSATA + M.2 | 2× 2.5" hot-swap + 2× mSATA |
| Operating Temp | -40°C to 70°C | -40°C to 70°C (full load) | -40°C to 70°C (35 W TDP) | -40°C to 70°C (35 W TDP) |
| SIM Slots | 2 | 2 | 2 | 1 |
| Transportation Certs | EN 50155, EN 50121-3-2, E-Mark, MIL-STD-810G | EN 50155, EN 50121-3-2, E-Mark, MIL-STD-810H | EN 50155, EN 50121-3-2 | EN 50155, EN 50121-3-2, E-Mark, EN 45545-2, MIL-STD-810G |
| View Specs | View Specs | View Specs | View Specs |
Transportation Computer FAQs
Which certifications matter for a transportation installation?
Can these computers run from vehicle or battery DC power?
How does a fanless computer survive a roadside cabinet in summer and winter?
Can I add cellular connectivity for remote sites?
Which model is best for tolling or ANPR lanes?
Do you help with configuration and volume programs?
Spec the Right Transportation Computer
Send your application details — a US-based engineer will reply within one business day.
