Security & Surveillance PCs
Surveillance & NVR PCs Built for 24/7 Recording, -40°C to 70°C
From a compact fanless edge recorder to a dual-GPU analytics platform — hot-swap RAID storage, wide-temperature ratings, and configuration help from a US-based engineer.
- -40°C to 70°C operation on all four featured models
- Fanless DI-1100, DS-1402, GM-1100 — no fan to fail
- Hot-swap RAID 0/1/5/10 (DS-1402, GM-1100, GP-3100)
- 600 W GPU power budget for analytics (GP-3100)
- Optional PoE camera power on the DI-1100 (61.6 W configuration)
Request a Quote
Tell us your camera count and retention target — a US-based engineer will reply within one business day.
Which Surveillance PC Fits Your System?
Four platforms, one decision path: size the recording load first, then add GPU compute where analytics runs. Every model below is rated to -40°C and carries MIL-STD-810 shock and vibration compliance.
EN 50155
Cincoze DI-1100-i5
Compact fanless edge recorder for mobile and transit surveillance, with an optional PoE camera-power configuration (61.6 W budget).
- Intel Core i5-8365UE, 4 cores, 15 W TDP
- -40°C to 70°C fanless operation
- 2× GbE LAN, RAID 0/1 (2.5" SATA + mSATA)
- E-Mark, EN 50155, MIL-STD-810G certified
MIL-STD-810G

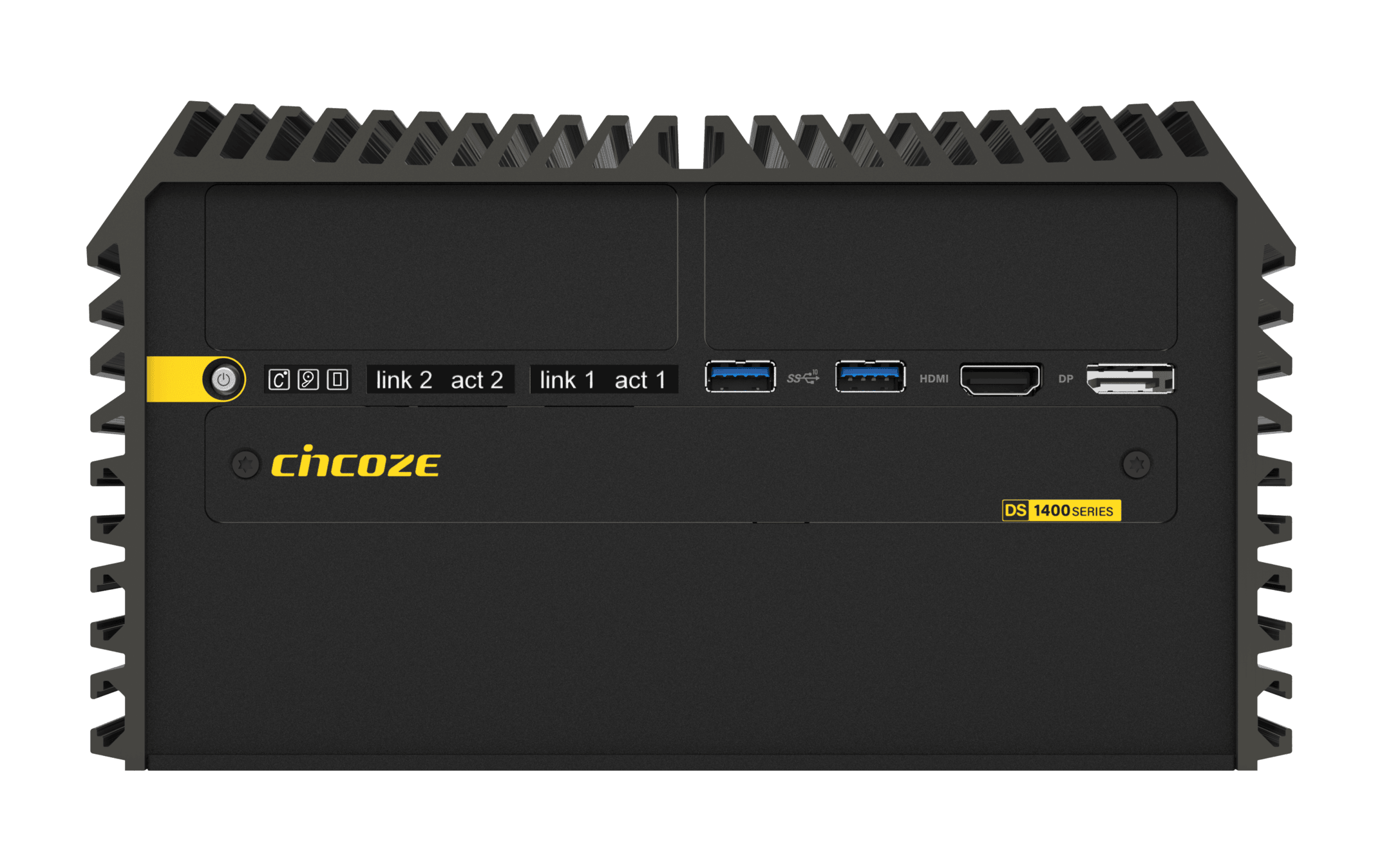

Cincoze DS-1402
Fanless NVR workhorse — 12th/13th Gen Core processing, hot-swap storage, and two PCIe/PCI slots for capture or network cards.
- 12th/13th Gen Intel Core, up to Core i9
- 2× 2.5" bays (1 hot-swap) + 3× mSATA + M.2 NVMe
- RAID 0/1/5/10, 2× GbE LAN
- -40°C to 70°C, 2× PCIe/PCI expansion slots
MIL-STD-810H

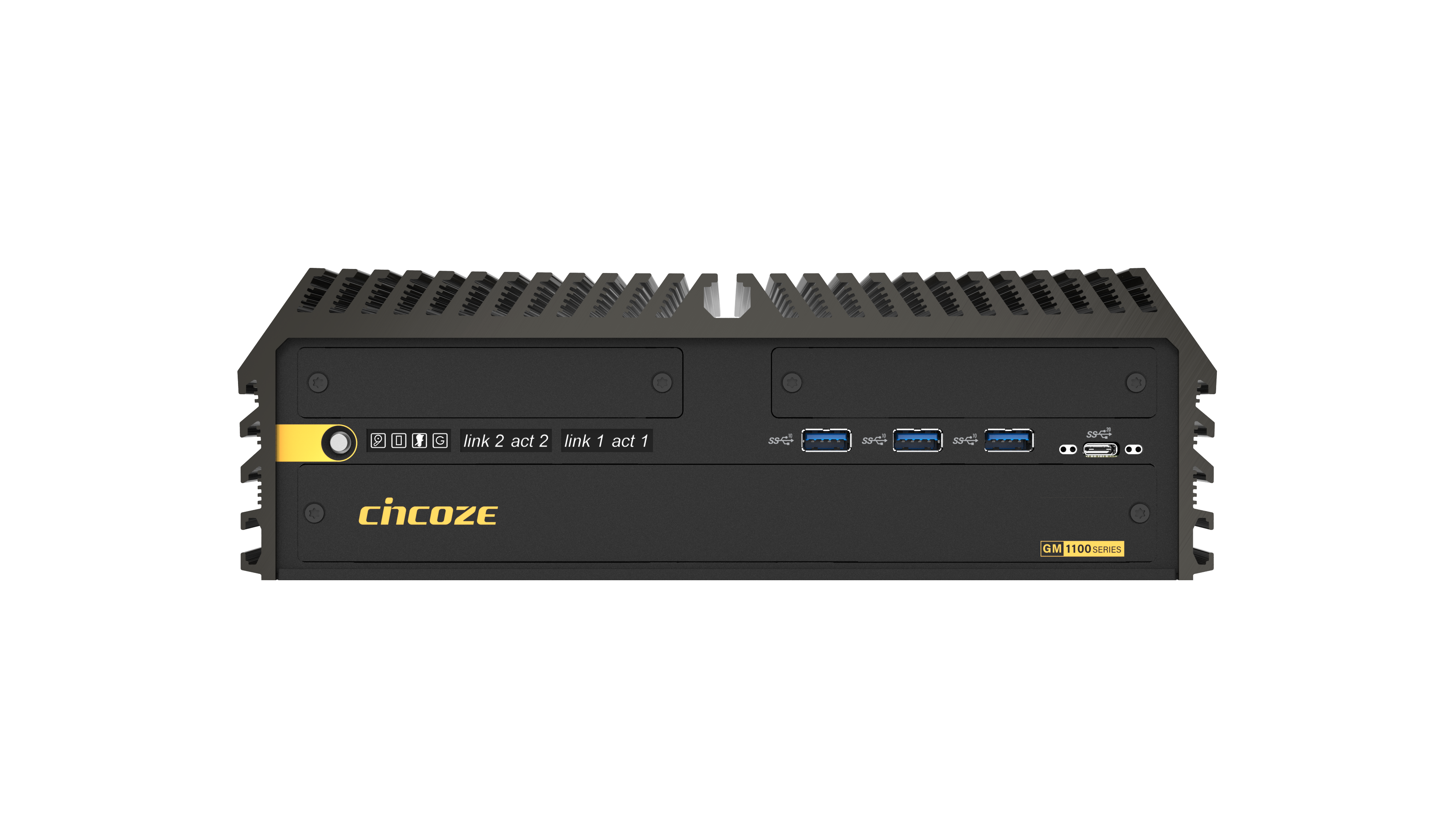

Cincoze GM-1100
Compact fanless analytics box — one MXM GPU module runs object detection or plate recognition beside the cameras it watches.
- 1× MXM 3.1 Type A/B GPU module socket
- 12th/13th Gen Intel Core, up to 96 GB DDR5
- 2× hot-swap 2.5" bays, RAID 0/1/5/10
- 2.5GbE + GbE LAN, -40°C to 70°C
MIL-STD-810H

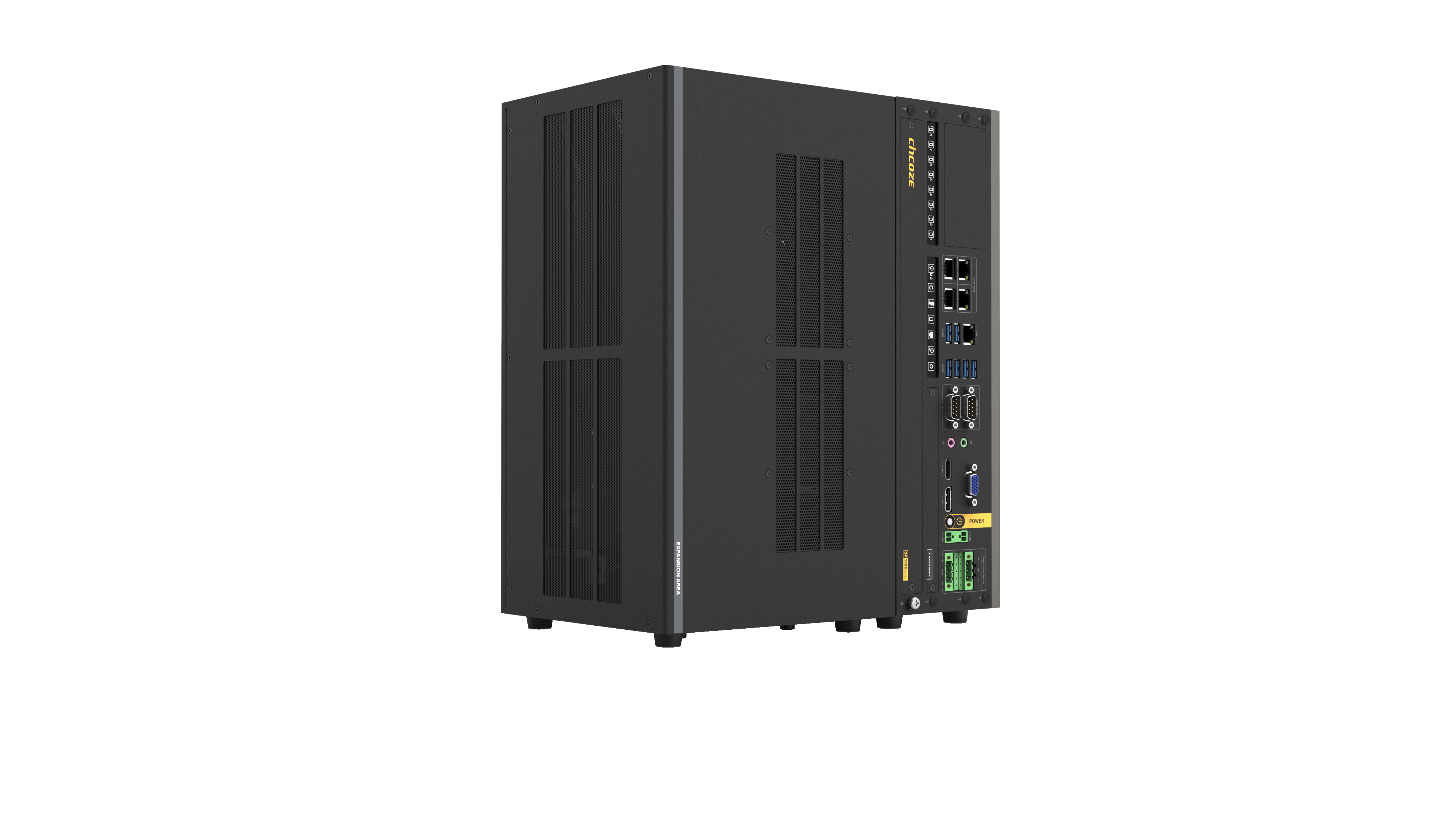

Cincoze GP-3100
Dual full-length GPU platform for large VMS and real-time analytics deployments — recording, inference, and storage in one box.
- 2× full-length GPUs, 600 W GPU power budget
- 4× 2.5GbE + 1× GbE LAN
- 4× hot-swap 2.5" bays + M.2 NVMe, RAID 0/1/5/10
- 12th/13th/14th Gen Intel Core, up to Core i9
Compare the Four Platforms
| Spec | DI-1100-i5 | DS-1402 | GM-1100 | GP-3100 |
|---|---|---|---|---|
| CPU | Core i5-8365UE, 4 cores, 15 W | 12th/13th Gen Core, up to i9 | 12th/13th Gen Core, up to 65 W | 12th/13th/14th Gen Core, up to i9 |
| Dedicated GPU | — | — | 1× MXM 3.1 Type A/B socket | 2× full-length, 600 W budget |
| Drive bays | 1× 2.5" SATA + mSATA | 2× 2.5" (1 hot-swap) + 3× mSATA + M.2 NVMe | 2× 2.5" hot-swap + M.2 NVMe | 4× 2.5" hot-swap + M.2 NVMe |
| SATA RAID | 0/1 | 0/1/5/10 | 0/1/5/10 | 0/1/5/10 |
| LAN | 2× GbE | 2× GbE | 1× 2.5GbE + 1× GbE | 4× 2.5GbE + 1× GbE |
| Max memory | 32 GB DDR4 | 96 GB DDR5 | 96 GB DDR5 | 96 GB DDR5 |
| Operating temp | -40°C to 70°C | -40°C to 70°C | -40°C to 70°C | -40°C to 70°C |
| View Specs | View Specs | View Specs | View Specs |
Where These Systems Record
24/7 CCTV & NVR Recording
Front-accessible hot-swap bays and RAID 0/1/5/10 keep footage flowing through a drive replacement (DS-1402, GM-1100, GP-3100).
VMS & Control-Room Servers
The DS-1402 drives up to four independent displays for operator video walls while recording to its internal array.
ANPR & Access Control
GPU inference at the gate: the GM-1100's MXM module handles plate reading and detection without a round trip to a data center.
Mobile & Transit Surveillance
The DI-1100-i5 carries E-Mark and EN 50155 certifications, 9–48 VDC input, and optional ignition sensing for buses and rail.
Perimeter & Outdoor Sites
-40°C to 70°C ratings suit roadside cabinets and gatehouses; the fanless DI-1100, DS-1402, and GM-1100 have no fan to fail or filter to clog.
Engineered for Around-the-Clock Video
GPU Analytics Without a Server Rack
Recording video is a storage problem; analyzing it is a compute problem. The GM-1100 adds one MXM 3.1 Type A/B GPU module to a 260 × 200 × 85 mm fanless chassis — enough for object detection or plate recognition running in the same cabinet as your camera switch. When one module isn't enough, the GP-3100 feeds two full-length graphics cards from a 600 W GPU power budget and records to four front-accessible hot-swap drive bays.
Both platforms run 12th/13th Gen Intel Core processors (the GP-3100 also lists 14th Gen), take up to 96 GB of DDR5 memory with ECC support, and accept 9–48 VDC power — no server rack, no air-conditioned closet.
Built for the Gatehouse, Not the Server Room
Surveillance hardware rarely gets a server room — it lives in roadside cabinets, gatehouses, and vehicle equipment bays. Every model on this page is rated for -40°C to 70°C operation (configuration-dependent, with extended-temperature peripherals), and the DI-1100, DS-1402, and GM-1100 are fanless: no fan to fail, no filter to clog.
- 9–48 VDC wide-range input with over-voltage, over-current, and reverse-power protection
- MIL-STD-810 shock and vibration compliance on all four featured models
- DIN-rail, VESA, wall, and side mounting on the DI-1100; 19" rack mounting on the GP-3100
- 513,628-hour MTBF on the DI-1100-i5
Surveillance PC Buying Questions
Can these computers power IP cameras over PoE?
How is video storage handled, and can I swap a drive without opening the unit?
Do I need a dedicated GPU for video analytics?
Can these systems run in a vehicle or an outdoor cabinet?
Will my VMS or NVR software run on these systems?
Do you support OEM and volume surveillance projects?
Spec Your Surveillance PC With an Engineer
Send your camera count, resolution, retention target, and install environment — a US-based engineer will reply within one business day.
