Rugged Panel PCs — Cincoze CRYSTAL Series

Rugged Panel PCs With IP65 Fronts and Fanless Wide-Temperature Operation

The Cincoze CRYSTAL line pairs sealed display modules — sunlight-readable to 1,800 nits on the CS series — with convertible fanless computer modules on 9–48 VDC power; the P2000 module alone is rated to -40°C.

  • IP65 dust/waterproof fronts on every display module
  • P2000 i3/i5 models: -40°C to 70°C fanless (with wide-temp storage/memory; ambient airflow)
  • Sunlight readable up to 1,800 cd/m² (CS-100)
  • 8.4"–24" displays: PCAP, resistive, or no-touch
  • MIL-STD-810H shock/vibration tested (P2302 module)

Request a Quote

Tell us your application — a US-based engineer will reply within one business day.

No spam. Your info goes to an engineer, not a list.

P2000 i3/i5 fanless operating range
-40°C to 70°C
Sealed front panel protection
IP65
CS-100 sunlight-readable brightness
1,800 cd/m²
P2000 wide-range power input
9–48 VDC
Industrial computing experience
30+ yrs

Which CRYSTAL Model Fits Your Application

CRYSTAL is a two-part system: pick a display module for the environment, pick a computer module for the workload — or pair a display with Cincoze's CDS monitor module to use it as an industrial monitor.

P2000 Series High Performance Convertible Computer Fanless, 9–48 VDC

P2000 Series High Performance Convertible Computer

High-performance computer module for demanding HMI, machine control, and harsh-environment duty.

  • 12th Gen Core i5/i3 and Core Ultra 7/5/3 options
  • -40°C to 70°C fanless on i3/i5 models; Core Ultra P2302: -40°C to 65°C
  • Up to 96 GB DDR5-5600 (P2302); quad independent display (P2202/P2302)
  • MIL-STD-810H shock/vibration tested (P2302 generation)
View Specs
P1000 Series Power Efficient Convertible Computer

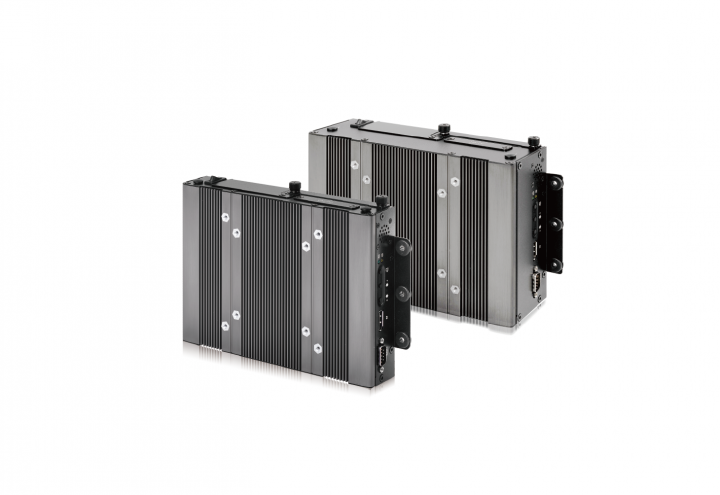

P1000 Series Power Efficient Convertible Computer

Power-efficient computer module for lighter HMI loads, kiosks, and space-constrained panels.

  • Intel Atom, Pentium, N-series, and Core i3 options
  • Up to 32 GB memory (DDR3L/DDR4/DDR5)
  • VESA, wall, DIN-rail, or CDS mounting
View Specs
CS-100 Series Sunlight Readable Display Module IP65 Front

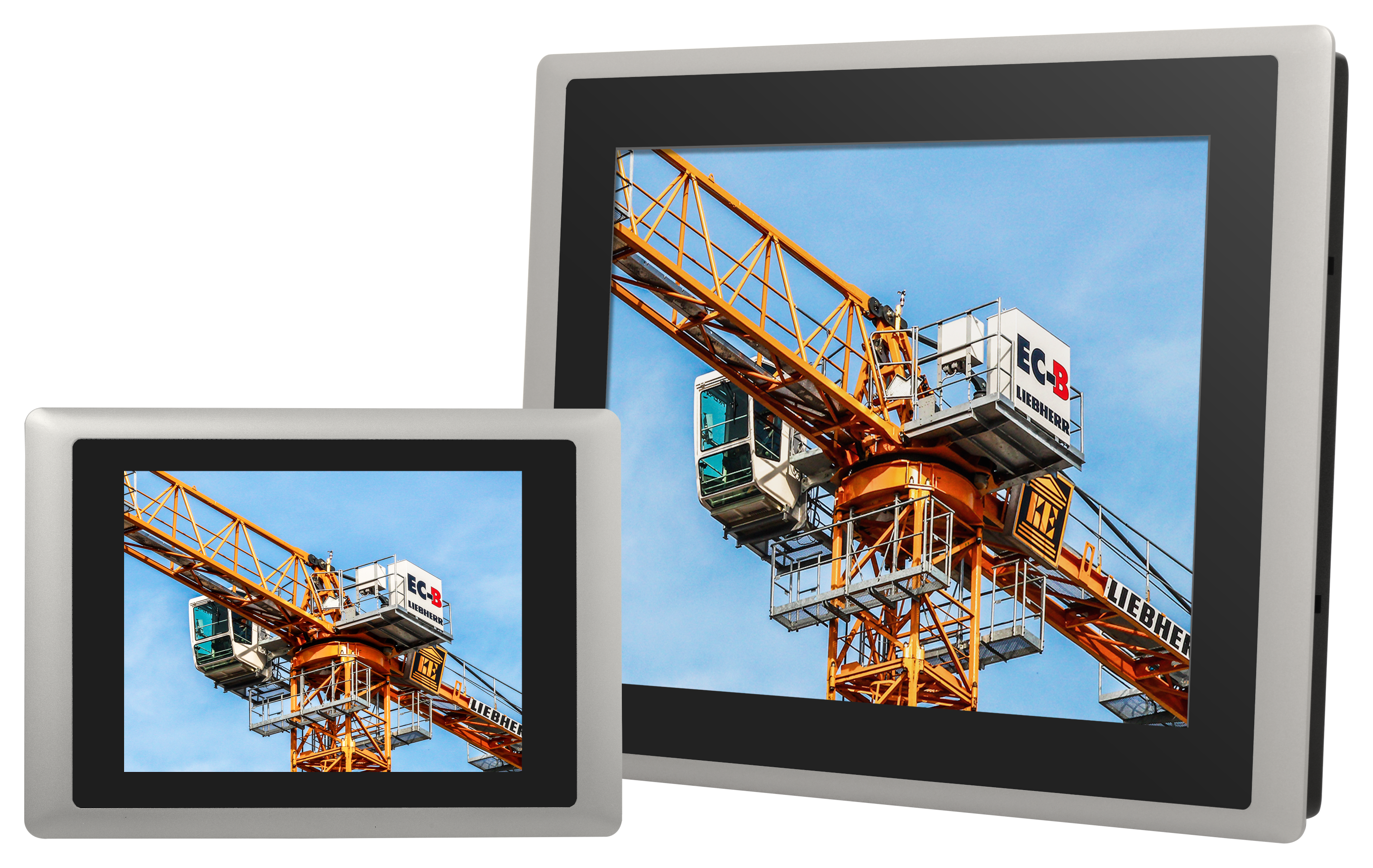

CS-100 Series Sunlight Readable Display Module

High-brightness display module for outdoor stations, yards, and high-glare plant floors.

  • 1,000–1,800 cd/m² sunlight-readable panels
  • 8.4"–24" sizes, projected capacitive touch
  • -20°C to 70°C operating (-30°C on CS-110H; industrial-grade peripherals, ambient airflow)
  • Aluminum die-cast front frame, wet-touch tracking
View Specs
CV-100 Series Display Module IP65 Front

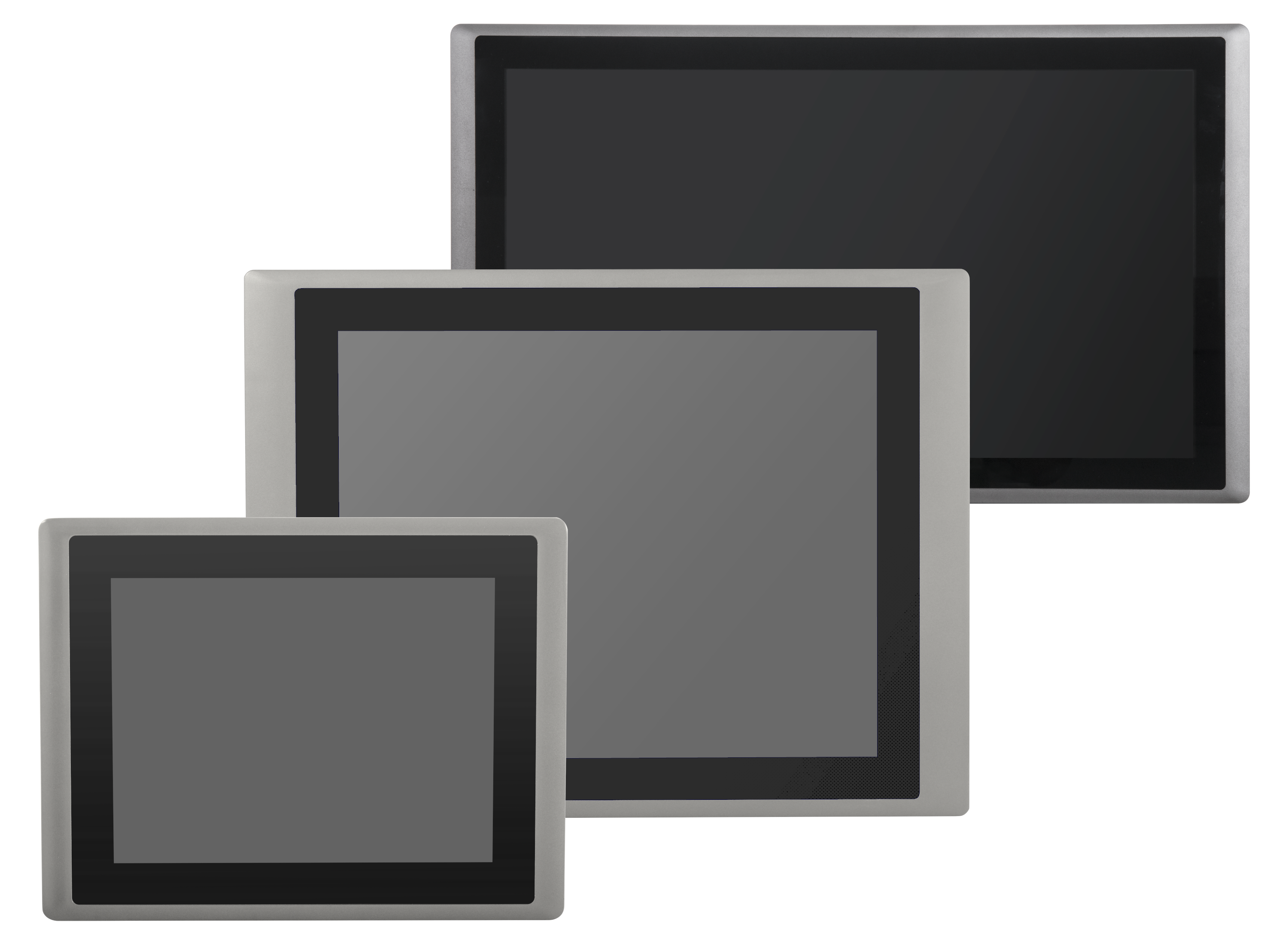

CV-100 Series Display Module

Flexible display module with the widest touch choice for indoor industrial HMI.

  • 8.4"–24" TFT-LCD, 300–500 cd/m² brightness
  • PCAP, 5-wire resistive, or non-touch glass
  • IP65 dust/waterproof front on every model
  • -20°C to 70°C on most models (-30°C on CV-112H); some sizes 0°C to 50–65°C
View Specs

Where Rugged Panel PCs Earn Their Keep

Machine & Line HMI

Panel-mount a CV-100 display with a P1000 or P2000 module into cabinets and machine cells for SCADA, line control, and recipe management.

Outdoor & High-Glare Stations

CS-100 modules hold 1,000–1,800 cd/m², so operators can read the screen in direct sun — gates, yards, ports, and mobile equipment.

Cold Storage & Hot Process Floors

P2000 i3/i5 modules operate from -40°C to 70°C without a fan — the Core Ultra P2302 to 65°C — covering freezer warehouses and heat-soaked production areas alike.

Rolling Stock & Transit

The P2302 generation is MIL-STD-810H shock/vibration tested and meets EN 61000-6-2/4 industrial EMC, with 9–48 VDC input for onboard power.

Why CRYSTAL Holds Up

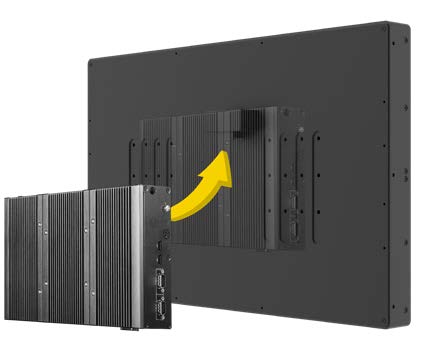

Cincoze Convertible Display System modules docking together

Convertible Display System (CDS)

Every CRYSTAL panel PC is two parts: a display module and a computer module that lock together through Cincoze's CDS interface. That changes the economics of a panel PC:

  • Upgrade compute without touching the panel — swap a P1000 for a P2000 when the workload grows; the display, cutout, and wiring stay put.
  • One display, two roles — pair a CS-100 or CV-100 with the CDS monitor module to use it as an industrial monitor today, then convert it to a full panel PC later.
  • Simpler service — a failure is a module swap, not a whole-unit replacement.

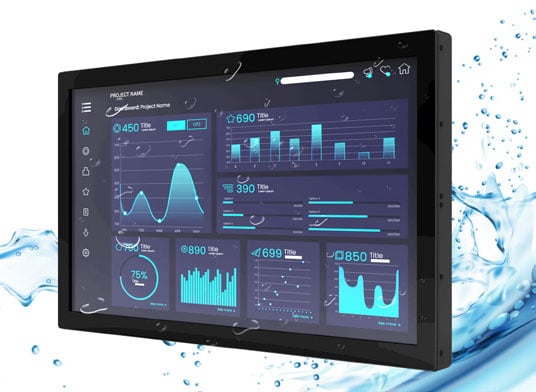

Cincoze CV-100 display module with aluminum die-cast front frame

Sealed, Die-Cast, Wide-Temp Construction

CRYSTAL display modules use rugged aluminum die-cast front frames with IP65 dust/waterproof front protection, so the operator-facing side stands up to dust, chips, and low-pressure water jets.

  • Projected capacitive touch with wet-touch tracking keeps responding with water on the glass.
  • Backlights rated 50,000–70,000 hours for 24/7 duty.
  • CS models run -20°C to 70°C (-30°C on the CS-110H); CV ranges vary from 0°C–50°C to -30°C–70°C by model — all with industrial-grade peripherals and ambient airflow.

Rugged Panel PC Buying Questions

What does an IP65 front rating actually cover?
IP65 means the front face is dust-tight and protected against low-pressure water jets from any direction. On a CRYSTAL panel PC the rating applies to the front panel, so the unit is designed to be panel-mounted with the sealed face outward and the electronics protected inside a cabinet or enclosure. Every CRYSTAL display module — CS-100 and CV-100 alike — carries the IP65 front rating.
What is the Cincoze Convertible Display System (CDS)?
CDS is the modular interface behind the CRYSTAL line. A display module (CS-100 or CV-100) and a computer module (P1000 or P2000) lock together to form a complete panel PC. The same display can also be configured as an industrial monitor with Cincoze's CDS monitor module, and you can upgrade the computer module later without replacing the display or changing the panel cutout.
How do I choose between the P1000 and P2000 computer modules?
The P1000 is the power-efficient option — Intel Atom, Pentium, N-series, and Core i3 processors with up to 32 GB of memory — suited to HMI, kiosk, and monitoring workloads. The P2000 steps up to 12th Gen Core i5/i3 and Core Ultra processors on 9–48 VDC input: i3/i5 models run fanless from -40°C to 70°C, while the Core Ultra P2302 runs -40°C to 65°C and adds up to 96 GB of DDR5 plus MIL-STD-810H shock and vibration testing (wide-temp ratings assume wide-temp storage/memory and ambient airflow). If the application involves heavy visualization, multiple displays, or a harsh environment, choose the P2000.
When do I need a sunlight-readable display?
Standard industrial panels like the CV-100 series run 300–500 cd/m², which reads well indoors. In direct sunlight or bright ambient light those screens wash out, so outdoor stations need 1,000 cd/m² or more — the CS-100 series offers 1,000–1,800 cd/m² panels for exactly that.
Should I pick projected capacitive or resistive touch?
Projected capacitive (PCAP) gives a flat glass front, multi-touch, and wet-touch tracking that stays accurate with water on the screen. Five-wire resistive responds to any stylus or heavy glove and is common on legacy lines. The CV-100 series offers PCAP, 5-wire resistive, or non-touch glass; the CS-100 series is PCAP.
Can ADEK configure a complete panel PC for my application?
Yes — tell us your display size, environment, and workload, and we'll configure the display module, computer module, memory, storage, OS, and expansion to match. We also support OEM and volume programs; mention quantities in your request.

Get the Right Rugged Panel PC Configured

Send your display size, environment, and workload — a US-based engineer will reply within one business day.
