Military-Grade Fanless PCs

Military-Grade Fanless PCs Tested to MIL-STD-810 Shock and Vibration

COTS Cincoze systems with MIL-STD-810H in their published certifications — fanless models run from -40°C up to 70°C (model and TDP dependent) on 9–48 VDC, configured and supported by ADEK in New Hampshire.

MIL-STD-810H shock & vibration certified
Fanless from -40°C — up to 70°C (DI-1200) or 60°C (DX-1300/DS-1500)
9–48 VDC wide-range DC input
Core Ultra 9 / Core i9 options; up to 600 W GPU budget @ 48 VDC
EN 50121-3-2 railway EMC (per EN 50155)

Request a Quote

Tell us your application — a US-based engineer will reply within one business day.

Shock & Vibration Certified: MIL-STD-810H
Widest Operating Range (with wide-temp storage/memory; ambient airflow): -40°C to 70°C
Wide-Range Power Input: 9–48 VDC
Dual-GPU Budget @ 48 VDC (GP-3100): Up to 600 W
Industrial Computing: 30+ yrs

Which MIL-STD-810 Fanless PC Fits Your Program?

Every system below lists MIL-STD-810H in its published certifications. Pick by performance class, expansion, and GPU need.

MIL-STD-810H

Cincoze DI-1200-i7

Compact 15 W fanless node for space- and power-constrained vehicle or field installs.

Intel Core i7-1265UE, 10 cores, 4.7 GHz turbo
-40°C to 70°C fanless at 100% CPU load (wide-temp peripherals; ambient airflow)
2× 2.5GbE LAN, 2× RS-232/422/485, 6× USB
MIL-STD-810H, EN 50121-3-2 (per EN 50155), E-Mark

View Specs

MIL-STD-810H

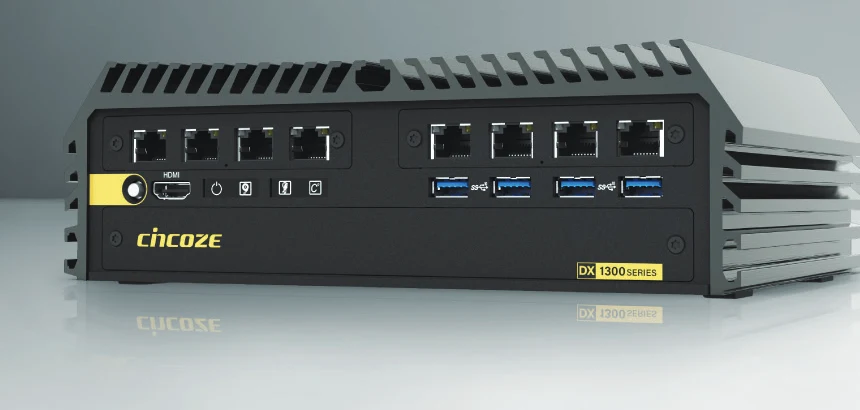

Cincoze DX-1300

High-performance compact workhorse — Intel Core Ultra 200S (Arrow Lake-S) with hot-swap storage in a fanless chassis.

Intel Core Ultra 200S, up to 24-core Core Ultra 9
-40°C to 60°C fanless (35 W TDP CPUs)
2× hot-swap 2.5" bays, RAID 0/1/5/10
4× RS-232/422/485, 8× USB 3.2, 2× 2.5GbE

View Specs

MIL-STD-810H

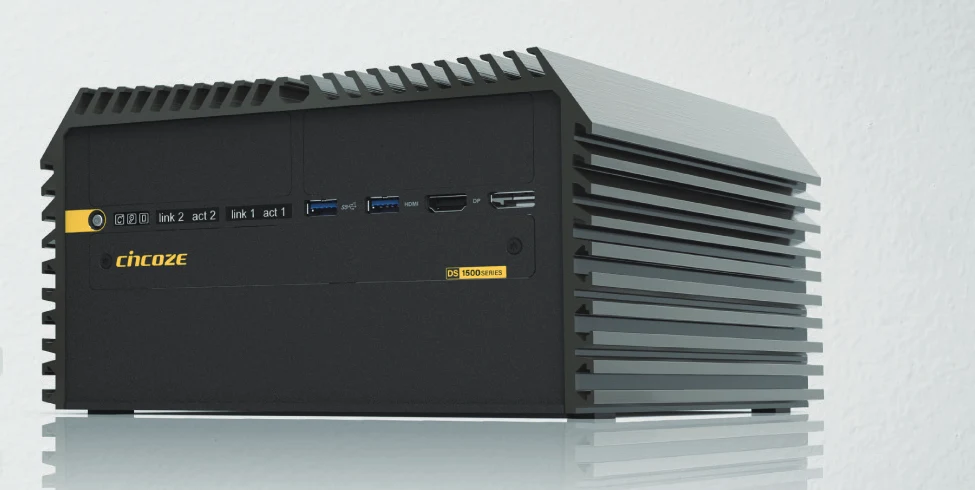

Cincoze DS-1500

Expandable flagship for sensor- and comms-heavy fits — modular CMI/CFM I/O; DS-1501/1502 add PCI/PCIe slots.

Intel Core Ultra 200S up to Ultra 9, 96 GB DDR5-6400 ECC
-40°C to 60°C fanless (35 W TDP CPUs)
Hot-swap 2.5" bay + internal 2.5" + M.2 NVMe
MIL-STD-810H, EN 50121-3-2 (per EN 50155), EN 45545-2

View Specs

MIL-STD-810H

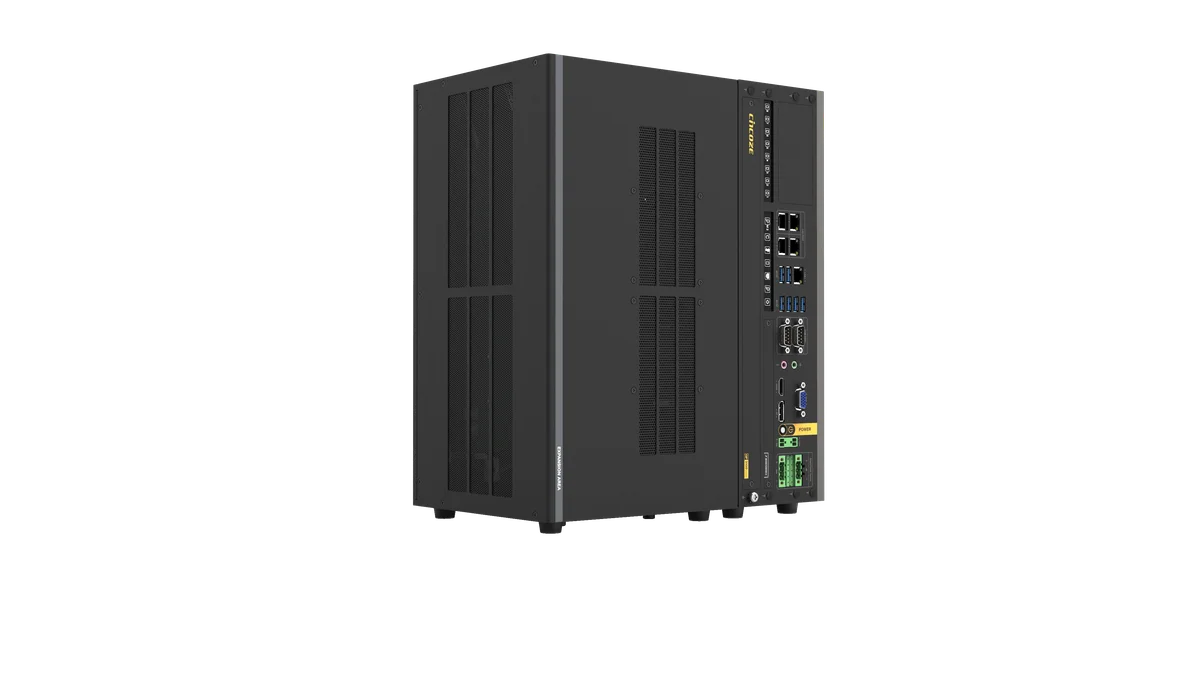

Cincoze GP-3100

Rugged dual-GPU platform for machine vision, sensor fusion, and edge AI inference.

2× full-length GPUs — up to 600 W @ 48 VDC (500 W @ 24 VDC)
14th/13th/12th Gen Intel Core (max 65 W)
4× hot-swap 2.5" bays + M.2 NVMe
-40°C to 70°C (35 W CPU; 60°C at 45/65 W), MIL-STD-810H

View Specs

Built for Defense-Adjacent Duty

Certified, Not Claimed

MIL-STD-810H appears in each featured unit's published certification list — verify it on the spec page before you buy.

9–48 VDC With Protections

Over-voltage, over-current, and reverse-power protection are standard; an optional CFM module adds 12V/24V ignition sensing.

Wide-Temp Fanless Cooling

Fanless models cool by conduction through the extruded-aluminum enclosure — -40°C to 70°C on the DI-1200-i7, -40°C to 60°C on the DX-1300 and DS-1500 with 35 W TDP CPUs.

COTS, Configured to Order

Standard commercial hardware — we configure memory, storage, OS, and expansion modules to match your requirements.

Hot-Swap Storage + RAID

Front-accessible 2.5" bays with RAID 0/1/5/10 support on the DX-1300, DS-1500, and GP-3100.

Rail and Vehicle Certs Too

EN 50121-3-2 railway EMC (per EN 50155) on all four featured models; E-Mark on the DI-1200-i7 and GP-3100.

What Military-Grade Means Here

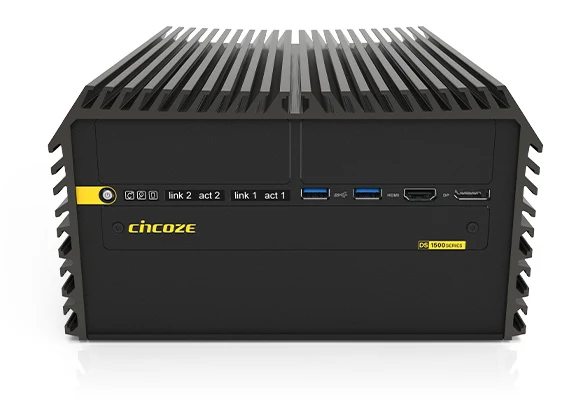

Cincoze DS-1502 rugged fanless embedded computer with two expansion slots

MIL-STD-810 Shock and Vibration, on the Record

MIL-STD-810 is the U.S. Department of Defense environmental engineering standard; revisions G (2008) and H (2019) define the laboratory shock and vibration test methods applied to commercial off-the-shelf hardware.

Every system on this page lists MIL-STD-810H in its published certifications — a spec-sheet line item you can verify, not a marketing adjective. All four also carry EN 50121-3-2 railway EMC compliance (the EMC clause of EN 50155), an independent measure of resistance to electrical noise.

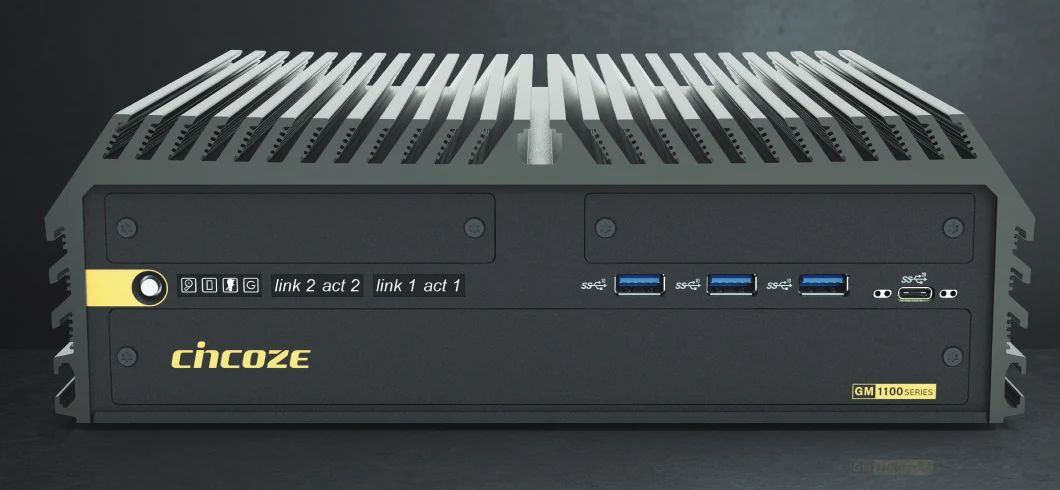

Heatsink fin array on a Cincoze GM-1100 fanless computer, showing the conduction-cooling path

Fanless Cooling That Survives the Ride

Fans are the first casualty of dust, vibration, and thermal cycling. The DI-1200-i7, DX-1300, and DS-1500 cool entirely through their extruded-aluminum enclosures — no moving parts in the thermal path.

DI-1200-i7: -40°C to 70°C at 100% CPU load (PassMark, no throttling)
DX-1300 / DS-1500: -40°C to 60°C with 35 W TDP processors
All ratings assume extended-temperature (wide-temp) storage and memory, ambient with air flow
Storage temperature rated -40°C to 85°C on the DX-1300 and DS-1500

Composite of Cincoze rugged computers in transportation applications

Vehicle and Field Power, Handled

All four featured systems accept 9–48 VDC wide-range DC and include over-voltage, over-current, and reverse-power protection as standard. For vehicle platforms, an optional CFM module adds 12V/24V power ignition sensing — with delay time management on the DX-1300, DS-1500, and GP-3100 — so the system powers up and shuts down with the vehicle instead of draining the battery.

A software-programmable watchdog timer with 256-level system reset is standard across all four models for unattended recovery.

Compare the Four MIL-STD-810 Platforms

Compare the Four MIL-STD-810 Platforms
	DI-1200-i7	DX-1300	DS-1500	GP-3100
MIL-STD-810 revision	810H	810H	810H	810H
CPU	Core i7-1265UE, 15 W, 10 cores	Core Ultra 200S, up to 24-core Ultra 9	Core Ultra 200S, up to 24-core Ultra 9	12th/13th/14th Gen, max 65 W
Operating temperature (wide-temp peripherals; ambient airflow)	-40°C to 70°C at full load	-40°C to 60°C (35 W TDP)	-40°C to 60°C (35 W TDP)	-40°C to 70°C (35 W) / to 60°C (45/65 W)
Max memory	32 GB DDR5	96 GB DDR5-6400 ECC	96 GB DDR5-6400 ECC	96 GB DDR5-5600 ECC
LAN	2× 2.5GbE	2× 2.5GbE	1× 2.5GbE + 1× GbE	4× 2.5GbE + 1× GbE
Storage	1× hot-swap 2.5"	2× hot-swap 2.5" + M.2 storage	2× 2.5" (1 hot-swap) + M.2 NVMe	4× hot-swap 2.5" + M.2 NVMe
GPU	Intel Iris Xe (integrated)	Intel Xe LPG (integrated)	Intel Xe LPG (integrated)	2× full-length GPUs, up to 600 W @ 48 VDC (500 W @ 24 VDC)
Weight	1.8 kg	3.59 kg	4.9 kg	7.7 kg (12.9 kg with dual-GPU GEB-3601)
	View Specs	View Specs	View Specs	View Specs

Military-Grade Fanless PC FAQ

What does MIL-STD-810G or 810H certification actually mean?

MIL-STD-810 is the U.S. Department of Defense environmental engineering standard. Revision G was published in 2008 and revision H in 2019; both define laboratory test methods for stresses such as shock and vibration. The systems on this page list MIL-STD-810H in their published certifications, so compliance is a verifiable spec-sheet line item rather than a marketing description.

Are these COTS systems or custom builds?

They are commercial off-the-shelf (COTS) platforms from Cincoze. We configure each unit to your requirement — memory, storage, operating system, and expansion modules — on top of the standard certified hardware, so you get a program-specific configuration without a custom-design effort.

Can you hold a fixed configuration across a program?

Yes — we support OEM and volume programs. Specify the exact configuration you need (CPU, memory, storage, OS, and expansion modules) and mention quantities and program requirements in your request. Reference that configuration on repeat orders and we'll configure to match.

Can these run directly from vehicle or generator DC power?

Yes. All four featured models accept 9–48 VDC wide-range DC input and include over-voltage, over-current, and reverse-power protection. For vehicle installs, an optional CFM module adds 12V/24V power ignition sensing, and on the DX-1300, DS-1500, and GP-3100 it includes delay time management for controlled startup and shutdown.

Which model should I start with?

Pick by performance and expansion. The DI-1200-i7 is the compact low-power choice at 15 W with dual 2.5GbE. The DX-1300 steps up to Intel Core Ultra 200S processors — up to a 24-core Core Ultra 9 — with hot-swap RAID storage. The DS-1500 adds modular CMI/CFM I/O expansion, and the DS-1501/1502 variants add PCI/PCIe card slots. The GP-3100 carries two full-length GPUs with up to a 600 W GPU power budget at 48 VDC (500 W at 24 VDC) for vision and AI workloads. If you're between two, send both requirements in the quote form.

What operating systems are supported?

All four featured models list Windows 11, Windows 10, and Ubuntu Linux support in their specifications. Tell us your OS and imaging requirements in the quote request and we'll configure the system to match.

Spec Your Military-Grade Fanless PC

Send your application and requirements — a US-based engineer will reply within one business day.

Request a Quote Call 603-895-9000
