Manufacturing PCs That Run the Line 24/7 — Fanless, -40°C to 70°C

Machine vision, line control, and operator HMI from one vendor — Cincoze and ARBOR platforms configured to your cell by engineers with 30+ years in industrial computing.

  • Fanless -40°C to 70°C at 100% CPU load, no throttling
  • MIL-STD-810G/H shock and vibration rated models
  • MXM GPU slot for vision inference — 360 W budget
  • 9–48 VDC input, over/reverse-voltage protection
  • RS-232/422/485 + 2.5GbE for PLC and SCADA links

Request a Quote

Tell us your application — a US-based engineer will reply within one business day.

No spam. Your info goes to an engineer, not a list.

Fanless Operating Range
-40°C to 70°C
Wide-Range Power Input
9–48 VDC
MTBF – DI-1200-i5
486,235 h
In Industrial Computing
30+ Years

Match the Machine to the Job

Four proven platforms covering line control, cell compute, vision inference, and operator HMI — each configurable to your requirements before it ships.

Cincoze DI-1200-i5 MIL-STD-810H

Cincoze DI-1200-i5

Compact fanless controller for line control, data acquisition, and SCADA gateway duty at the machine.

  • 12th Gen Intel Core i5-1245UE, 10 cores, DDR5
  • -40°C to 70°C fanless, 9–48 VDC input
  • 2× 2.5GbE LAN, 2× RS-232/422/485, 6× USB
  • DIN rail, VESA, or wall mount
View Specs
Cincoze DS-1300 MIL-STD-810G

Cincoze DS-1300

Xeon-capable workhorse for robot cells and compute-heavy control where a line stop is expensive.

  • 10th Gen Intel Xeon or Core i3–i9 (W480E)
  • -40°C to 70°C fanless with 35 W TDP CPUs
  • Up to 64 GB DDR4, RAID 0/1/5/10 storage
  • 4× CMI + 1× CFM + 3× mini-PCIe expansion
View Specs
Cincoze GM-1000

Cincoze GM-1000

Fanless MXM GPU computer for machine-vision QC and deep-learning inference beside the line.

  • Intel Xeon/Core + MXM 3.1 GPU (NVIDIA/AMD)
  • -40°C to 70°C (35 W CPU), 360 W power budget
  • 4× RS-232/422/485, 8× USB 3.2, 2× GbE
  • 50 Grms shock / 5 Grms vibration
View Specs

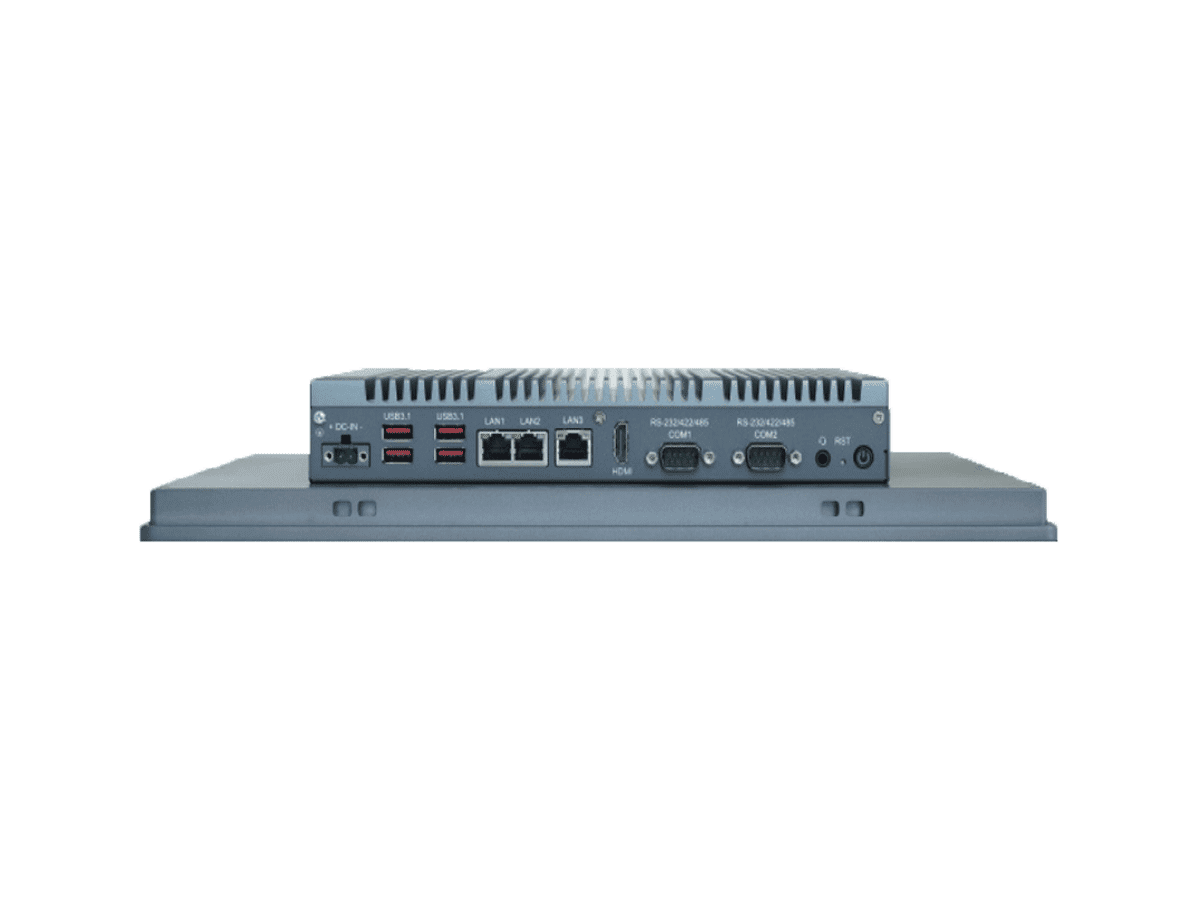

ARBOR SP-151C (Core i5)

ARBOR SP-151C (Core i5)

15.6-inch multi-touch panel PC for operator stations, HMI, and SCADA visualization at the cell.

  • 11th Gen Intel Core i5, up to 32 GB DDR4
  • 15.6" Full HD P-cap touch, 450 cd/m², IP66 front
  • 3× LAN (1× 2.5GbE + 2× GbE), 4× serial
  • 4× USB 3.2 Gen 2
View Specs

Where These PCs Earn Their Keep

Machine Vision QC

The GM-1000 pairs a socketed Xeon/Core CPU with an MXM GPU module to run multi-camera inspection and deep-learning defect detection beside the line.

PLC & SCADA Gateways

The DI-1200-i5 bridges PLCs to plant networks over 2× 2.5GbE LAN and RS-232/422/485 serial — and mounts on the same DIN rail as the controls it serves.

Robot Cell Control

The DS-1300 runs Xeon or Core i3–i9 processors with RAID-capable storage and CMI/CFM module expansion for coordinating multi-axis cells.

Parcel & Material Sorting

Parcel & Material Sorting

Wide-temperature fanless computers keep sorters, conveyors, and print-and-apply stations running in the unheated ends of the plant.

Predictive Maintenance

Collect drive, spindle, and sensor data over serial and Ethernet, with 9–48 VDC input to run straight from cabinet power.

Engineering That Holds Up on the Floor

Wide temperature range operation from -40°C to 70°C

Fanless Cooling Built for Dust, Oil Mist, and Heat

Fans pull dust, oil mist, and coolant vapor through electronics — and a clogged filter is a service ticket. The Cincoze platforms on this page cool by conduction through a finned extruded-aluminum enclosure instead.

  • DI-1200-i5: rated -40°C to 70°C at 100% CPU load (PassMark) with no thermal throttling
  • DS-1300: -40°C to 70°C with 35 W TDP processors
  • No fans or filters to clog, service, or replace
Browse Fanless Embedded Computers
Embedded GPU computers for machine vision

GPU Vision Without a Server Rack

The GM-1000 puts a socketed Intel Xeon or Core processor and an MXM 3.1 GPU module (NVIDIA or AMD) in one fanless box with a 360 W total power budget — inference at the line, not in a server room.

  • Triple independent display: DVI-I, DisplayPort, HDMI
  • 2× front-accessible 2.5" drive trays plus M.2 NVMe, RAID 0/1/5/10
  • 50 Grms shock and 5 Grms vibration resistance
Browse Embedded GPU Computers
Cincoze CMI and CFM modular expansion

Modular I/O Instead of a Custom Build

Cincoze CMI and CFM expansion modules let the same base system take on extra LAN, serial, and I/O — no custom chassis, no motherboard respin.

  • DS-1300: 4× CMI + 1× CFM slots plus 3× mini-PCIe
  • DI-1200-i5: 2× CMI + 1× CFM plus M.2 B-key and E-key sockets
  • Front-accessible hot-swap 2.5" SATA bay on the DI-1200 — service a drive without unmounting the PC
Browse Cincoze Embedded Computers

Manufacturing PC Questions, Answered

Can a fanless PC handle 24/7 duty in a hot manufacturing enclosure?
Yes. Fanless models cool by conducting heat into a finned aluminum enclosure instead of moving air through the electronics. The Cincoze DI-1200-i5 is rated for -40°C to 70°C operation at 100% CPU load without thermal throttling, and there are no fans or filters to clog with dust or oil mist.
Which model fits machine-vision inspection?
For rule-based vision at moderate camera counts, a CPU-only unit such as the DI-1200-i5 or DS-1300 is often enough. For deep-learning inference or multi-camera lines, the GM-1000 adds an MXM 3.1 GPU module (NVIDIA or AMD) with a 360 W total power budget in the same fanless format.
How do these PCs talk to PLCs and older factory equipment?
Every model on this page carries native RS-232/422/485 serial ports alongside gigabit or 2.5GbE Ethernet, so they connect to legacy serial devices and modern plant networks at the same time. Cincoze CMI and CFM modules can add more LAN and serial ports where a project needs them.
What power input do they accept on the plant floor?
The Cincoze models accept 9–48 VDC wide-range input with over-voltage, over-current, and reverse-power protection built in, so a 12 V, 24 V, or 48 V cabinet supply works directly.
Can ADEK configure memory, storage, and OS before shipping?
Yes — tell us your requirements and we'll configure memory, storage, OS, and expansion to match. Depending on model, Windows 10, Windows 11, and Linux are supported.
Do you support OEM and volume programs for machine builders?
Yes — we support OEM and volume programs; mention quantities in your request and a US-based engineer will reply within one business day.
