Fanless Industrial PCs

Fanless Industrial PCs in Four Tiers — From Entry Box to Xeon-Class Workstation

Four performance tiers on one page — from a quad-core entry box to a Xeon-capable workstation — all vent-free, silent, and conduction-cooled.

  • -40°C to 70°C operation with no fans or filters
  • 9–48 VDC wide-range DC input across all four tiers
  • Quad-core entry to Xeon-capable workstation class
  • MIL-STD-810G and EN 50155 rated models
  • Hot-swap bays + RAID 0/1/5/10 on workstation tiers

Request a Quote

Tell us your application — a US-based engineer will reply within one business day.

No spam. Your info goes to an engineer, not a list.

Operating Temperature, Every Featured Model
-40°C to 70°C
Wide-Range Power Input
9–48 VDC
Max DDR5 Memory (DX-1200)
96 GB
MTBF (DA-1100-N42)
632,353 h
Industrial Computing Experience
30+ Years

Choose Your Performance Tier

Four fanless tiers, one rugged platform family — every model below runs -40°C to 70°C on 9–48 VDC.

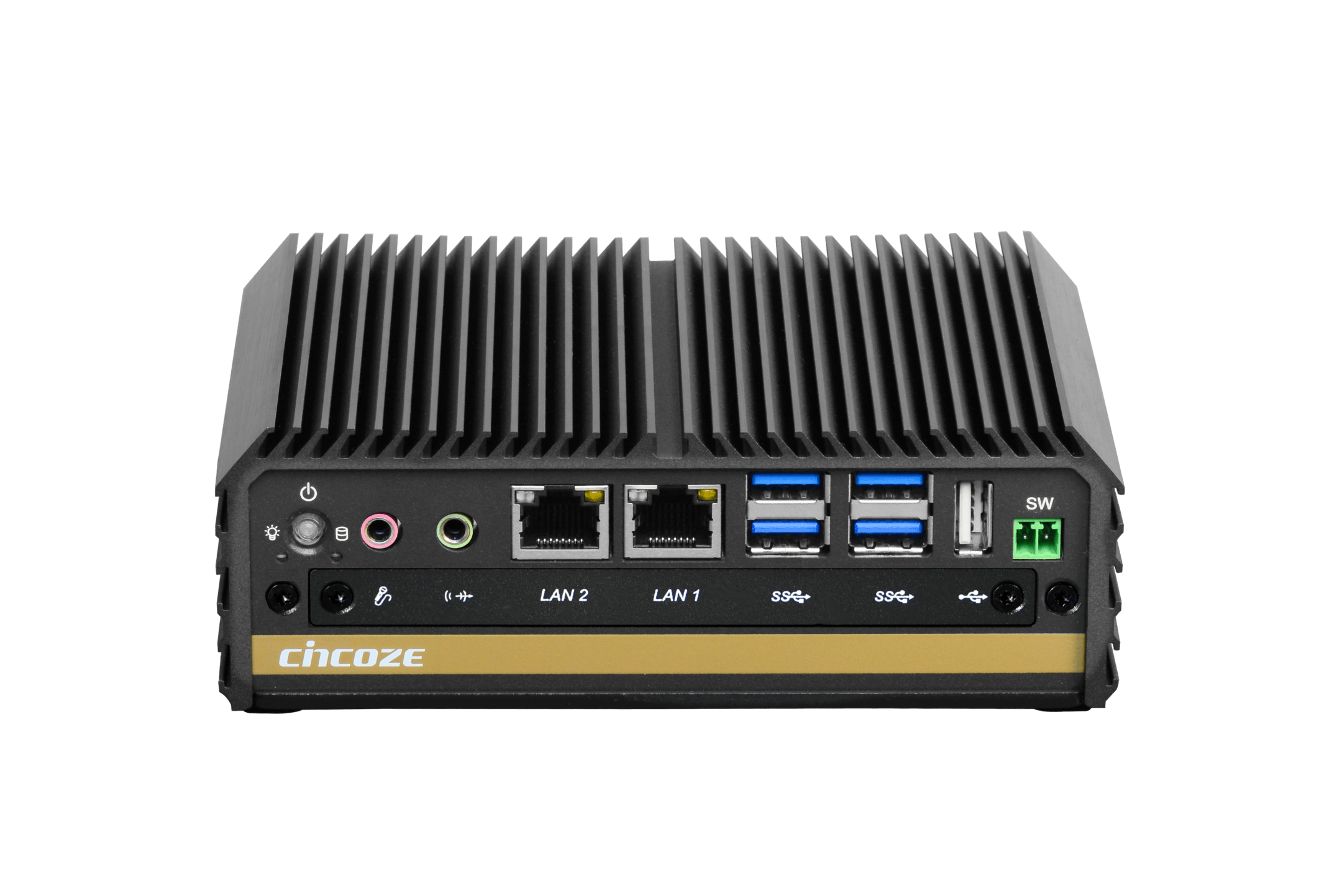

Cincoze DA-1100-N42

Cincoze DA-1100-N42

Entry tier for kiosks, data gateways, and light automation where space and budget are tight.

  • Intel Pentium N4200 quad-core
  • -40°C to 70°C fanless
  • 2× GbE, 2× COM (RS-232/422/485), 5× USB
  • 9–48 VDC, 50 Grms shock resistance
View Specs
Cincoze DI-1100-i5 MIL-STD-810G

Cincoze DI-1100-i5

Power-saving mid tier — a 15W Core i5 that holds the full wide-temp range for vehicle and trackside duty.

  • Intel Core i5-8365UE, 15W TDP
  • -40°C to 70°C with the 15W CPU
  • 2× GbE, 2× COM, 6× USB, triple display
  • EN 50155, E-Mark, MIL-STD-810G
View Specs
Cincoze DS-1300 Xeon Support

Cincoze DS-1300

Workstation tier for heavy compute — 10th Gen Xeon/Core with the deepest storage and modular expansion.

  • Intel Xeon/Core (10th Gen), W480E chipset
  • Up to 64 GB DDR4, RAID 0/1/5/10
  • 2× 2.5″ bays + 3× mSATA + 1× M.2 NVMe
  • -40°C to 70°C (35W TDP), 180W power budget
View Specs
Cincoze DX-1200 EN 50155

Cincoze DX-1200

High-performance compact tier — 12th/13th Gen Core up to i9 with hot-swap storage and a DDR5 ECC option.

  • 12th/13th Gen Intel Core, up to i9
  • Up to 96 GB DDR5, ECC support
  • 2× hot-swap 2.5″ bays, 4× COM, 8× USB
  • -40°C to 70°C (35W TDP), MIL-STD-810G
View Specs

What Makes a Fanless Industrial PC Different

Wide temperature range operation from -40°C to 70°C

Conduction Cooling: No Fans, No Filters, No Intake

Every model on this page moves CPU heat into the extruded-aluminum enclosure, which acts as one large heatsink. With no intake fan there is no filter to clog and no airflow pulling dust across the electronics — and no moving parts in the cooling system to wear out.

The ratings are honest about processor power: the DA-1100-N42 and the 15W DI-1100-i5 hold -40°C to 70°C, while the DS-1300 and DX-1200 hold that range at 35W TDP and publish derated ranges for their higher-power CPU options (with an external fan kit). Wide-temp figures assume extended-temperature peripherals and ambient airflow.

Browse All Fanless Systems
Shock and vibration resistant industrial computer design

Built for Shock, Vibration, and Dirty Power

The DA-1100-N42 is rated to 50 Grms shock and 5 Grms vibration; the DI-1100-i5, DS-1300, and DX-1200 carry MIL-STD-810G shock and vibration compliance for machine-mounted and mobile installs.

On the power side, all four tiers accept 9–48 VDC and include over-voltage, over-current, and reverse-power protection, so a sagging or miswired supply doesn't take the computer with it. Vehicle ignition sensing is available through an optional CFM module on the DI, DS, and DX tiers.

DIN rail mounted fanless industrial computer in a control cabinet

Mounts Where the Work Is

These are cabinet and machine computers, not desktops. The DA-1100-N42 measures just 150 × 105 × 52.3 mm and weighs 0.87 kg, mounting on DIN rail, VESA, or wall — and the DI-1100-i5 and DX-1200 offer the same mounting options at higher performance.

A software-programmable watchdog timer with 256-level system reset is standard across the lineup, so an unattended unit in a cabinet or enclosure can recover on its own.

The Tier Ladder at a Glance

The Tier Ladder at a Glance
DA-1100-N42 (Entry)DI-1100-i5 (Mid)DS-1300 (Workstation)DX-1200 (High-Perf Compact)
CPUPentium N4200, 4 coresCore i5-8365UE, 15W TDPXeon/Core 10th Gen (W480E)Core 12th/13th Gen, up to i9
Max memory8 GB DDR3L32 GB DDR464 GB DDR496 GB DDR5 (ECC option)
Storage1× 2.5″ + 1× mSATA1× 2.5″ + 1× mSATA, RAID 0/12× 2.5″ + 3× mSATA + 1× M.2, RAID 0/1/5/102× hot-swap 2.5″ + 2× mSATA, RAID 0/1/5/10
I/O2× GbE, 2× COM, 5× USB2× GbE, 2× COM, 6× USB2× GbE, 2× COM, 8× USB2× GbE, 4× COM, 8× USB
Operating temp-40°C to 70°C-40°C to 70°C (15W CPU)-40°C to 70°C (35W TDP)-40°C to 70°C (35W TDP)
MountingDIN rail, VESA, wallDIN rail, VESA, wall, sideWallDIN rail, VESA, wall
Key certificationsUL, cUL, CB, CE, FCCMIL-STD-810G, EN 50155, E-MarkMIL-STD-810G, EN 50155, ULMIL-STD-810G, EN 50155, EN 45545-2, E-Mark

Fanless Industrial PC FAQs

Why choose a fanless industrial PC over a regular desktop?
Cooling fans are the first mechanical failure point in most computers, and they pull dust, oil mist, and debris across the electronics. A fanless industrial PC cools by conduction through a vent-free aluminum enclosure, so there are no filters to service and no airflow path for contamination. The designs on this page are also rated for conditions a desktop is not: -40°C to 70°C operation, 9–48 VDC input with over-voltage and reverse-power protection, and shock and vibration ratings up to MIL-STD-810G.
How does a fanless PC keep from overheating?
Heat moves from the CPU into the finned extruded-aluminum housing, which acts as one large heatsink and sheds heat to the surrounding air. Ratings follow processor power: the 15W Core i5 in the DI-1100-i5 holds -40°C to 70°C, while the DS-1300 and DX-1200 hold that range at 35W TDP and publish derated ranges for higher-power CPU options (with an external fan kit). Leave clearance around the fins so convection can do its work.
Which performance tier do I need?
Use the DA-1100-N42 (quad-core Pentium N4200) for kiosks, data gateways, and light automation. Step up to the DI-1100-i5 when you need Core-class performance in a power-constrained or vehicle installation — its 15W CPU holds the full -40°C to 70°C range. The DS-1300 is the workstation tier, with 10th Gen Xeon/Core processors, up to 64 GB of memory, and multi-drive RAID. The DX-1200 delivers 12th/13th Gen Core performance up to i9 with DDR5 and hot-swap storage in a more compact chassis. Not sure? Send your workload and environment through the form and an engineer will recommend a tier.
Do these systems run Windows or Linux?
Both. The DX-1200 lists Windows 11, Windows 10, Ubuntu, and Linux support; the DA-1100-N42, DI-1100-i5, and DS-1300 list Windows 10 and Linux. Tell us your target OS in the quote request and we'll configure the system to match.
Can you configure memory, storage, and expansion before shipping?
Yes — tell us your requirements and we'll configure memory, storage, OS, and expansion to match. Each tier has room to grow: the DS-1300 offers two 2.5-inch bays, three mSATA sockets, and an M.2 slot with RAID 0/1/5/10, and the DI, DS, and DX tiers accept Cincoze CMI/CFM expansion modules for added I/O and vehicle ignition sensing.
Do you support OEM and volume programs?
Yes — we support OEM and volume programs; mention quantities in your request. ADEK has 30+ years in industrial computing and is based in Raymond, New Hampshire, with US-based sales and support engineers.

Find the Right Fanless Tier for Your Application

Tell us your workload, environment, and I/O — a US-based engineer will reply within one business day.
