Fanless Embedded Box PCs: 9–48 VDC, -40°C to 70°C Models, Mount Anywhere
Cincoze and ARBOR box PCs engineered to be designed into machines, kiosks, and cabinets — extruded-aluminum enclosures, wide-range DC power, and models rated -40°C to 70°C with no fan to fail.
- 9–48 VDC input on all four Cincoze models shown
- -40°C to 70°C fanless (DA-1200-N97, DC-1200-N42)
- DIN-rail, VESA, and wall mounting on all Cincoze units
- As small as 150 × 105 × 52.3 mm, 0.81 kg (DA-1200)
- Up to 6 COM ports + 8-bit GPIO (DE-1000)
Request a Quote
Tell us your application — a US-based engineer will reply within one business day.
Which Fanless Box PC Fits Your Design?
Four compact Cincoze units and two ARBOR alternatives — from 7 W entry compute to Core i5 class, all fanless.

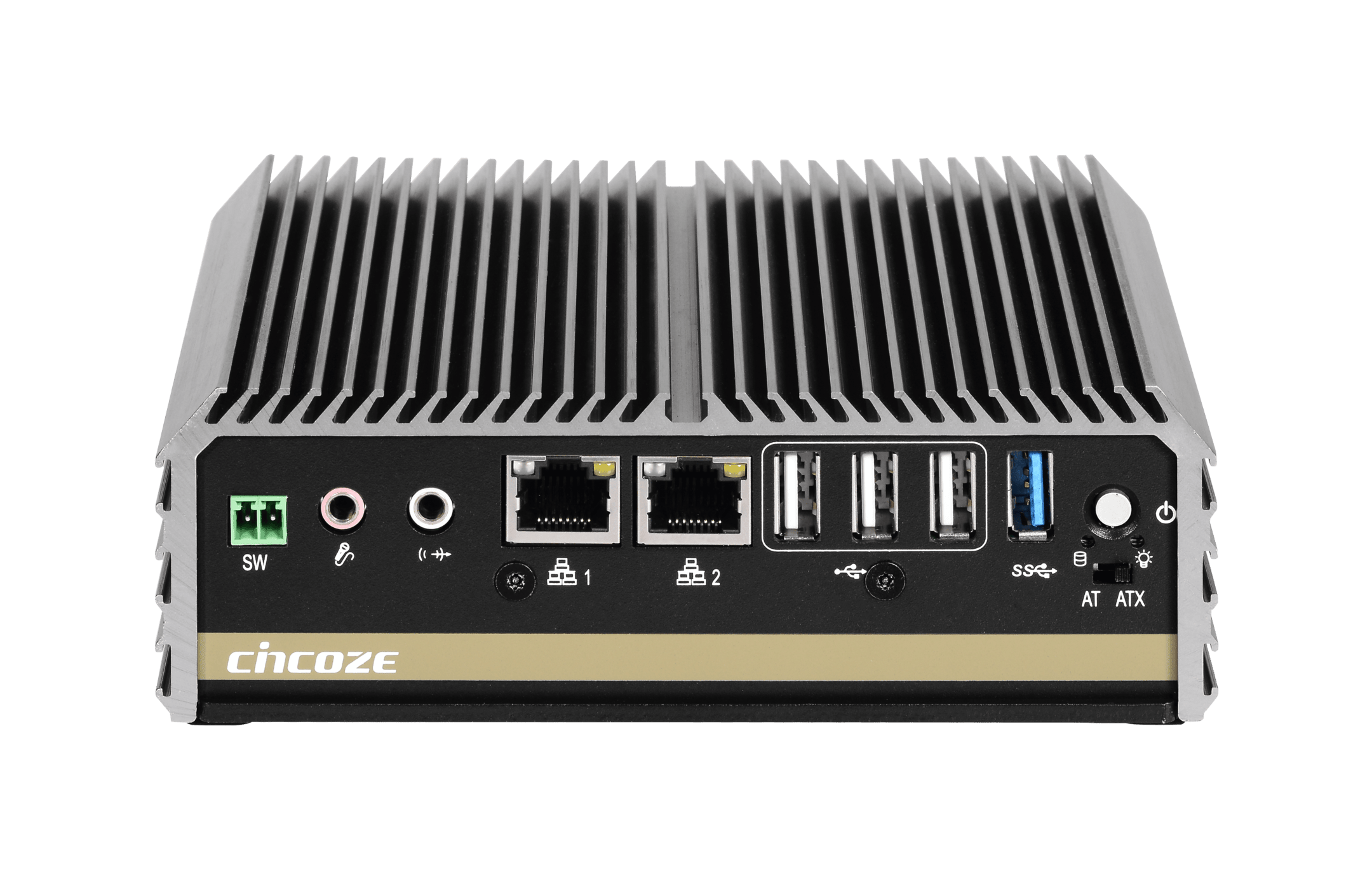

Cincoze DA-1000
Palm-size entry box PC for gateways, kiosks, and light control where every millimeter counts.
- Intel Atom E3826, 7 W TDP
- -25°C to 70°C fanless
- 2× GbE, 2× COM, 4× USB
- 150 × 105 × 52.3 mm, 0.86 kg
MIL-STD-810H
Cincoze DA-1200-N97
Current-generation quad-core N97 with DDR5 and 2.5GbE in the same tiny footprint — the default pick for new designs.
- Intel N97 quad-core, up to 3.6 GHz
- -40°C to 70°C fanless
- 2× 2.5GbE LAN, 2× USB 3.2 Gen 2
- 2× M.2 + 2.5" SATA, up to 16 GB DDR5
E-Mark

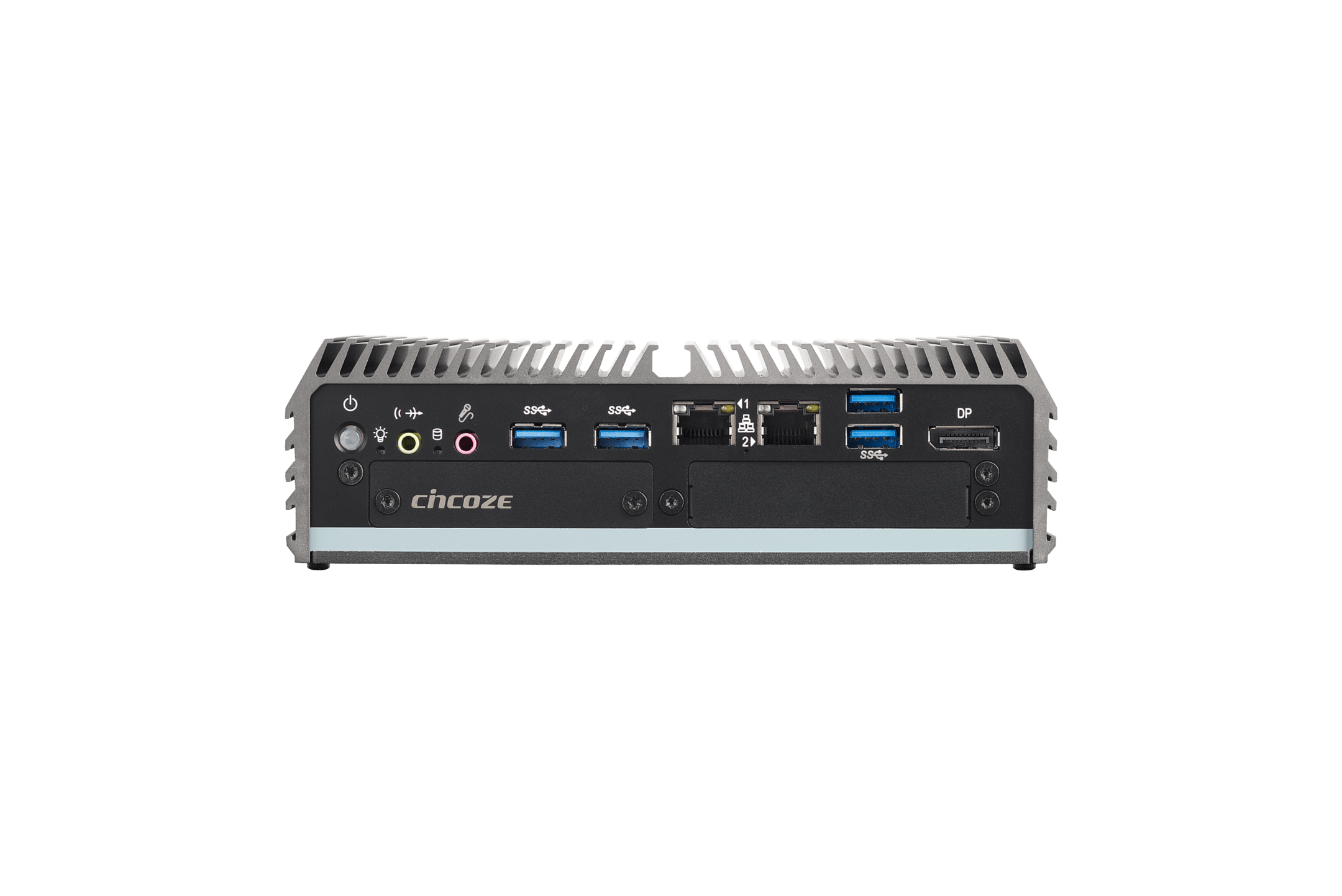

Cincoze DC-1200-N42
Compact quad-core unit that drives three independent displays and accepts CMI/CFM expansion modules.
- Intel Pentium N4200 quad-core
- -40°C to 70°C fanless
- 3 independent displays (DVI-D + DP + CMI)
- 2× GbE, 2× COM, 4× USB 3.2 Gen 1
EN 50155

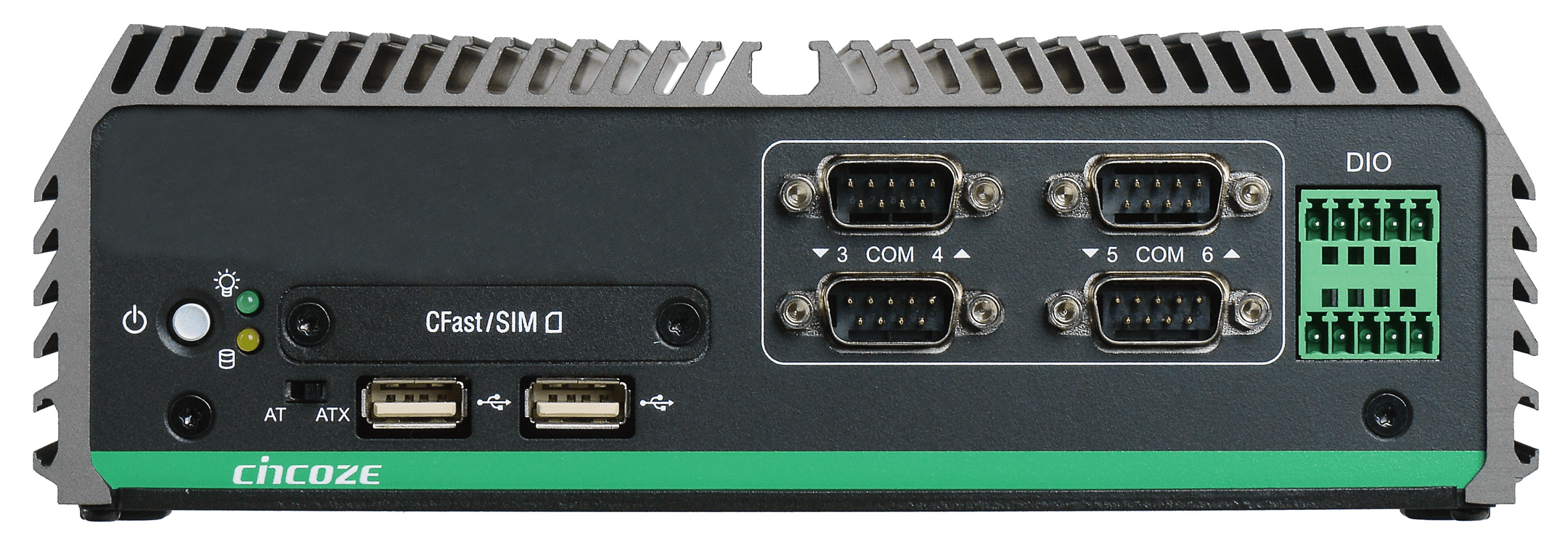

Cincoze DE-1000
Entry compute with heavy I/O: six COM ports, dual drive bays, GPIO, and built-in ignition sensing for vehicle and rail fitouts.
- Intel Atom E3845 quad-core
- 6× COM (RS-232/422/485), 8-bit GPIO
- 2× 2.5" SATA bays + mSATA + CFast
- Built-in 12V/24V ignition sensing

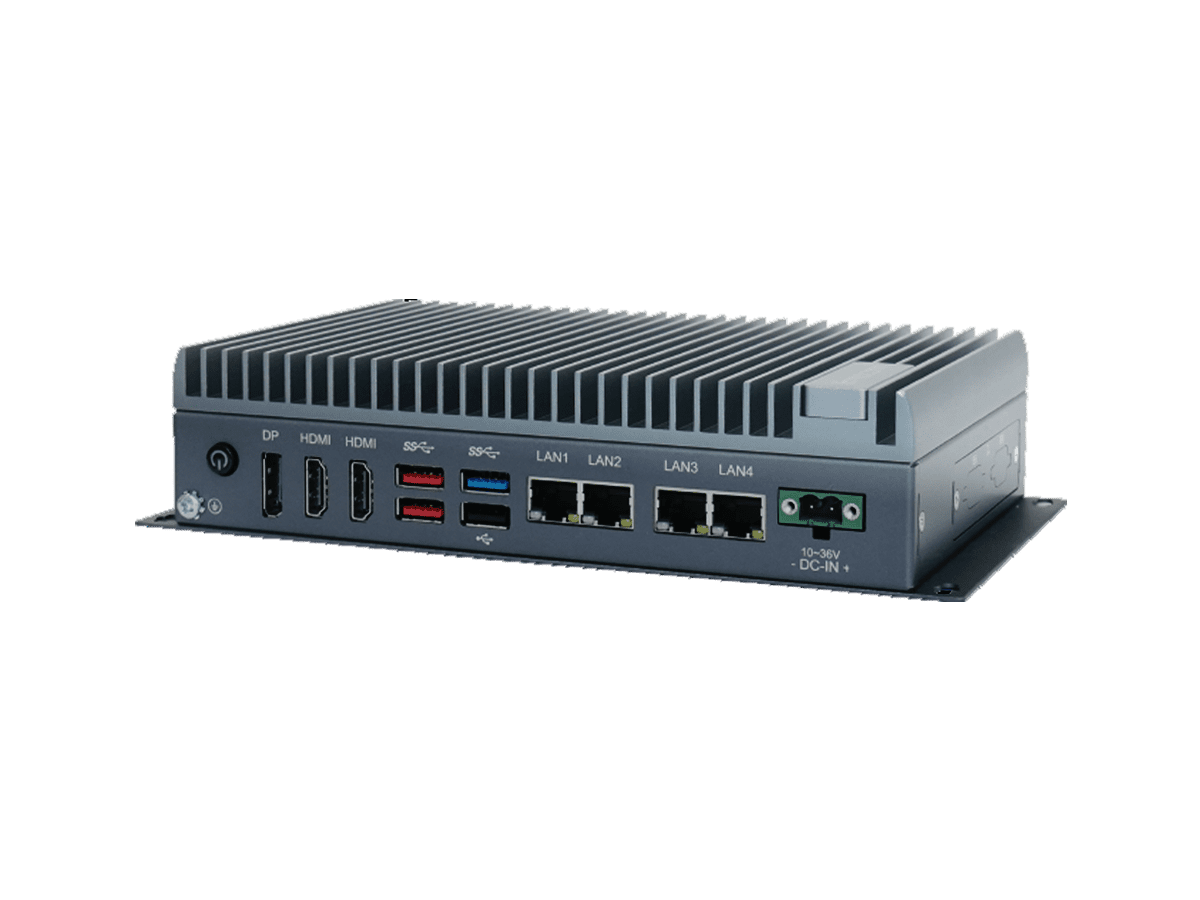

ARBOR SB-244 (i5-1135G7)
For embedded installs that need workstation-class compute: 11th Gen Core i5 with Iris Xe graphics in a 49 mm-tall chassis.
- Intel Core i5-1135G7, up to 4.2 GHz
- 4× GbE LAN, 4× COM, 6× USB
- -20°C to 60°C fanless
- 224 × 140 × 49.2 mm

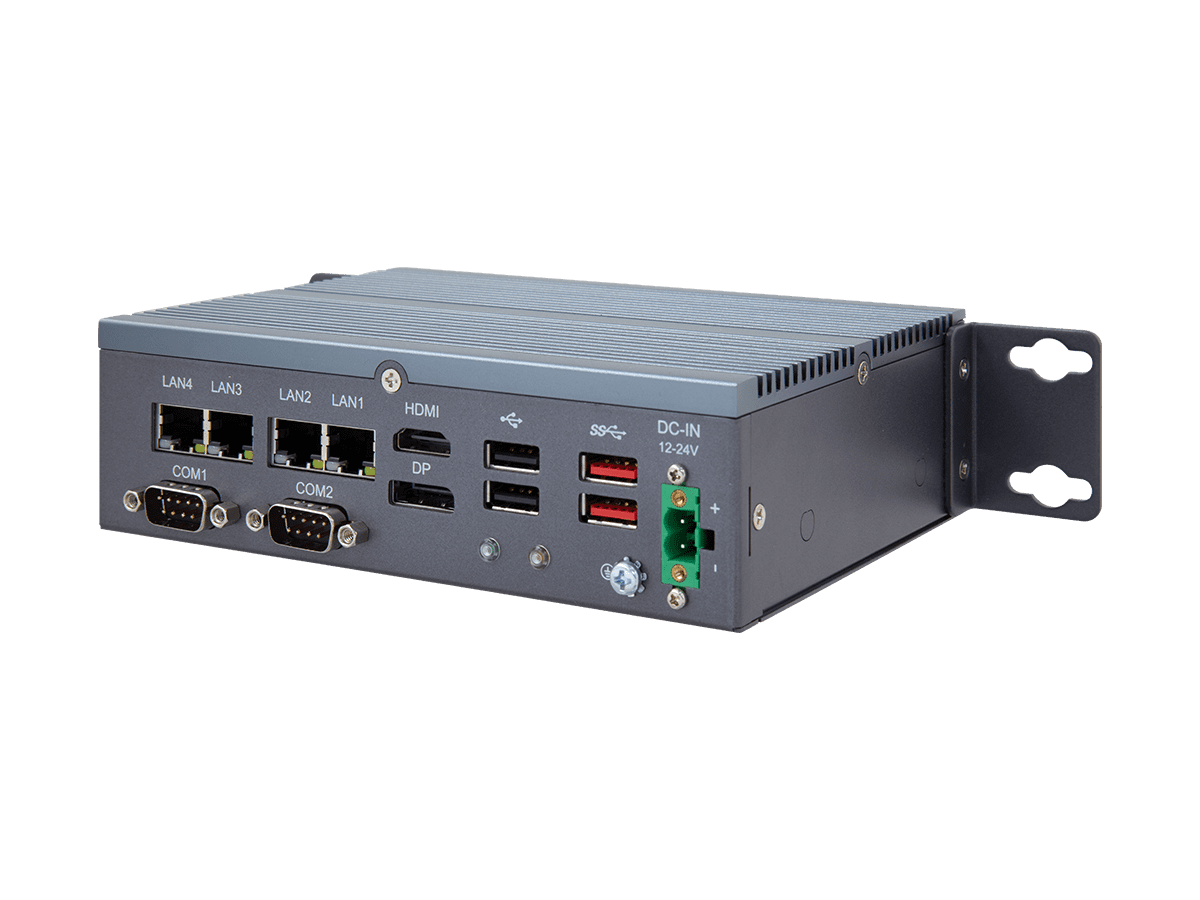

ARBOR SB-142-1J64
Slim Celeron unit with four LAN ports — three of them 2.5GbE — for network-edge and protocol-conversion duty.
- Intel Celeron J6412, up to 2.6 GHz
- 4× LAN: 3× 2.5GbE + 1× GbE
- -20°C to 60°C fanless
- 165 × 120 × 50 mm, up to 32 GB DDR4
Compare the Compact Cincoze Line
| Spec | DA-1000 | DA-1200-N97 | DC-1200-N42 | DE-1000 |
|---|---|---|---|---|
| CPU | Atom E3826, 7 W | N97 quad-core, 12 W | Pentium N4200 quad-core | Atom E3845 quad-core |
| Operating Temp | -25°C to 70°C | -40°C to 70°C | -40°C to 70°C | -25°C to 70°C |
| Memory | Up to 8 GB DDR3L | Up to 16 GB DDR5 | Up to 8 GB DDR3L | Up to 8 GB DDR3L (2 slots) |
| LAN | 2× GbE | 2× 2.5GbE | 2× GbE | 2× GbE |
| COM Ports | 2 | — | 2 | 6 |
| Storage | 2.5" SATA + mSATA | 2.5" SATA + 2× M.2 | 2.5" SATA + mSATA | 2× 2.5" SATA + mSATA + CFast |
| Expansion | 2× Mini-PCIe + CMI | M.2 3052 + M.2 2242 + CMI | 2× Mini-PCIe + 2× CMI + 2× CFM | 2× Mini-PCIe |
| Ignition Sensing | — | — | Optional (CFM) | Built-in 12V/24V |
| Key Certifications | CE, FCC Class A | MIL-STD-810H | E-Mark | EN 50155, EN 50121-3-2 |
| Size / Weight | 150 × 105 × 52.3 mm, 0.86 kg | 150 × 105 × 52.3 mm, 0.81 kg | 185 × 131 × 56.5 mm, 1.42 kg | 203 × 200 × 65 mm, 2.84 kg |
Where These Box PCs Get Designed In
Machine & OEM Integration
Mount inside the machine frame on a VESA plate or DIN rail, feed 9–48 VDC straight from the machine supply, and wire I/O over COM, GPIO, and LAN.
Kiosks & Self-Service
No fan means no noise and no dust path in a sealed kiosk. The DA-1000 fits behind most displays at 150 × 105 × 52.3 mm and drives two independent screens.
Industrial IoT Gateways
Bridge PLCs to the network: RS-232/422/485 serial on one side, up to 2.5GbE on the other, with on-board SIM sockets and Mini-PCIe/M.2 slots for cellular radios.
In-Vehicle & Mobile Equipment
The DE-1000 carries built-in 12V/24V ignition sensing plus EN 50155 rail certification; the E-Mark-certified DC-1200-N42 adds ignition sensing via an optional CFM module.
Built for Integration, Not Just Installation
Three Mounting Options, No Custom Brackets
Every Cincoze model on this page ships with DIN-rail, VESA, and wall mounting options, so the same unit can ride a cabinet rail, hide behind a display, or bolt to a machine frame without fabricated brackets.
The extruded-aluminum enclosure doubles as the heatsink: the chassis sheds CPU heat passively, which is what lets these systems run sealed against dust with no fan to fail. Power draw stays low — about 15 W total on the DA-1000 and 10 W on the DE-1000.
Add I/O Without Redesigning the Box
Mini-PCIe, M.2, and Cincoze CMI/CFM module slots let one chassis cover many builds: add Wi-Fi or a cellular radio (SIM sockets are on board), a third display output on the DC-1200-N42, or 12V/24V ignition sensing via a CFM module.
Need a full-size expansion card? The DE series scales up: the DE-1001 adds an optional PCI or PCIe x1 slot and the DE-1002 adds two, on the same fanless Atom platform.
Fanless Embedded PC Questions
How does a fanless embedded PC stay cool?
Which model is right for a new OEM design?
Can these run from a 24 V industrial rail or 12 V vehicle power?
Which operating systems are supported?
Can you configure memory, storage, and the OS for my application?
Do you support OEM and volume programs?
