Cincoze DA-1100 Series

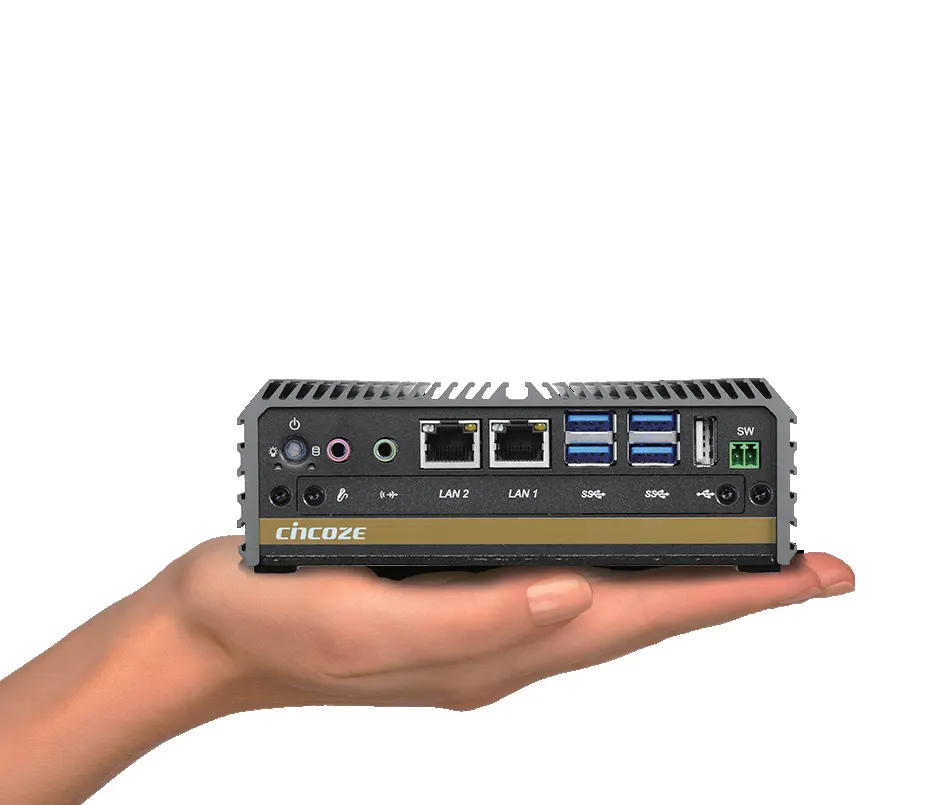

Cincoze DA-1100 — Compact Fanless PC Built for -40°C to 70°C Duty
Two CPU tiers in one 150 × 105 mm sealed aluminum chassis, plus the DDR5-class DA-1200-N97 step-up — compare all three and spec the right one below.
- -40°C to 70°C fanless operation
- 9–48 VDC wide-range power input
- 50 Grms shock, 5 Grms vibration (DA-1100)
- 2× GbE LAN, 2× RS-232/422/485, 5× USB
- 150 × 105 × 52.3 mm, 0.87 kg
Request a Quote
Tell us your application — a US-based engineer will reply within one business day.
Pick Your DA Model
All three share the 150 × 105 mm fanless chassis and -40°C to 70°C rating — choose by CPU, memory generation, and LAN speed.
DA-1100-N33
Entry model for kiosks, signage players, and light gateway duty where a dual-core CPU covers the load.
- Intel Celeron N3350, 2 cores, up to 2.4 GHz
- -40°C to 70°C fanless
- 2× GbE LAN, 2× RS-232/422/485, 5× USB
- Triple independent display support
DA-1100-N42
Quad-core mainstay of the family — the pick for multi-display HMIs and busier edge workloads.
- Intel Pentium N4200, 4 cores, up to 2.5 GHz
- -40°C to 70°C fanless
- 2× mini-PCIe + SIM for Wi-Fi/cellular
- DVI-D + VGA + optional CMI display out
MIL-STD-810H
DA-1200-N97
Current-generation step-up: DDR5 memory, NVMe storage, and 2.5GbE LAN in the same footprint.
- Intel N97, 4 cores, up to 3.6 GHz
- 1× DDR5-4800 SO-DIMM, up to 16 GB
- 2× 2.5GbE LAN, 2× USB 3.2 Gen 2
- -40°C to 70°C fanless, MIL-STD-810H
DA-1100-N33 vs DA-1100-N42 vs DA-1200-N97
| Spec | DA-1100-N33 | DA-1100-N42 | DA-1200-N97 |
|---|---|---|---|
| CPU | Celeron N3350, 2C, up to 2.4 GHz | Pentium N4200, 4C, up to 2.5 GHz | Intel N97, 4C, up to 3.6 GHz |
| Memory | 1× DDR3L-1600, up to 8 GB | 1× DDR3L-1600, up to 8 GB | 1× DDR5-4800, up to 16 GB |
| LAN | 2× GbE (Intel I210) | 2× GbE (Intel I210) | 2× 2.5GbE (Intel I226) |
| Storage | 2.5" SATA + mSATA | 2.5" SATA + mSATA | 2.5" SATA + 2× M.2 B-key (NVMe) |
| USB | 4× USB 3.2 Gen 1 + 1× USB 2.0 | 4× USB 3.2 Gen 1 + 1× USB 2.0 | 2× USB 3.2 Gen 2 |
| Displays | 3 independent (DVI-I + optional CMI) | 3 independent (DVI-I + optional CMI) | 2 independent (DisplayPort + optional CMI) |
| Expansion | 2× mini-PCIe, SIM, CMI, CFM | 2× mini-PCIe, SIM, CMI, CFM | 2× M.2 B-key, SIM, optional CMI |
| Operating temp | -40°C to 70°C | -40°C to 70°C | -40°C to 70°C |
| Power input | 9–48 VDC | 9–48 VDC | 9–48 VDC |
| OS support | Windows 10, Linux | Windows 10, Linux | Windows 11, Windows 10, Ubuntu, Linux |
| Certifications | CE, FCC, UL/cUL, CB | CE, FCC, UL/cUL, CB | CE, FCC, UL/cUL, CB, MIL-STD-810H |
Where the DA-1100 Fits
Kiosks & Self-Service
No fan means no noise and no filter service inside a sealed kiosk enclosure, and the 52.3 mm-tall chassis fits behind most panels.
IoT & Cellular Gateways

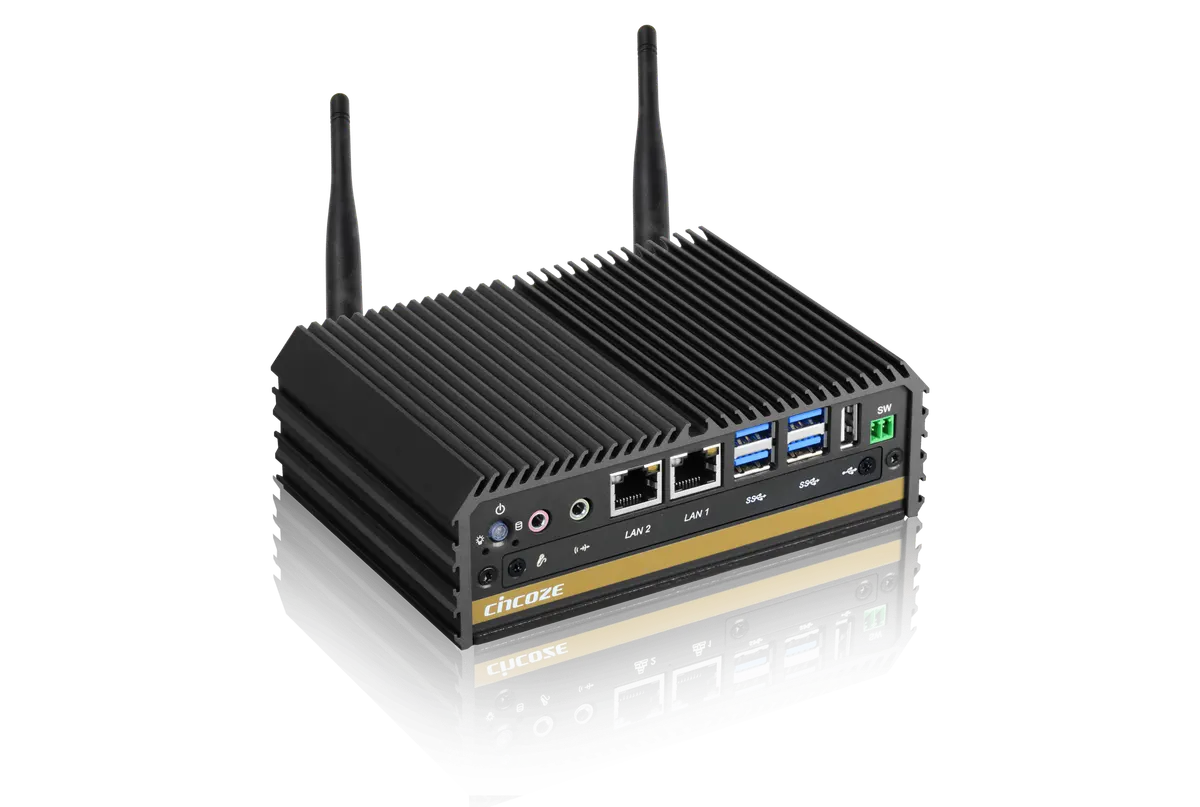

Dual GbE ports bridge machine and plant networks; two full-size mini-PCIe slots plus a SIM socket add Wi-Fi or cellular uplinks.
Light Automation Control
Two RS-232/422/485 ports talk to PLCs, drives, and instruments, and DIN-rail mounting drops it straight into a control cabinet.
Digital Signage & Displays
Drives up to three independent 1920 × 1080 displays from a box that mounts on the VESA points behind the screen.
DA-1100 Design Details
Sealed Fanless Cooling, Rated to 70°C
The DA-1100 moves heat by conduction: the extruded aluminum chassis is the heatsink, so there is no fan, no vent, and no filter to service. That is what supports a rated operating range of -40°C to 70°C (with extended temperature peripherals, ambient with air flow) and a calculated MTBF of 632,353 hours.
Storage temperature is rated -40°C to 85°C, and operating humidity up to 95% non-condensing.

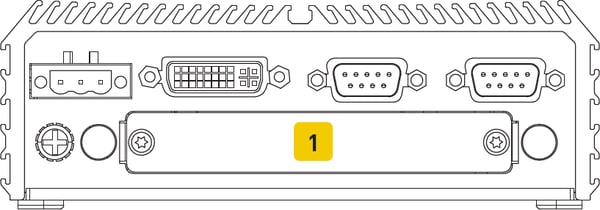

Modular Expansion: mini-PCIe, CMI, and CFM
Two full-size mini-PCIe sockets and a SIM slot handle Wi-Fi or cellular radios and other add-on cards. Beyond those, the DA-1100 carries Cincoze's module bays:
- CMI (Combined Multiple I/O) — one slot; on the DA-1100-N42, the optional CMI module supplies the third display output alongside the DVI-D + VGA pair on the DVI-I port.
- CFM (Control Function Module) — one slot for Cincoze function modules.
Tell us the I/O your application needs and we'll spec the module set with you.

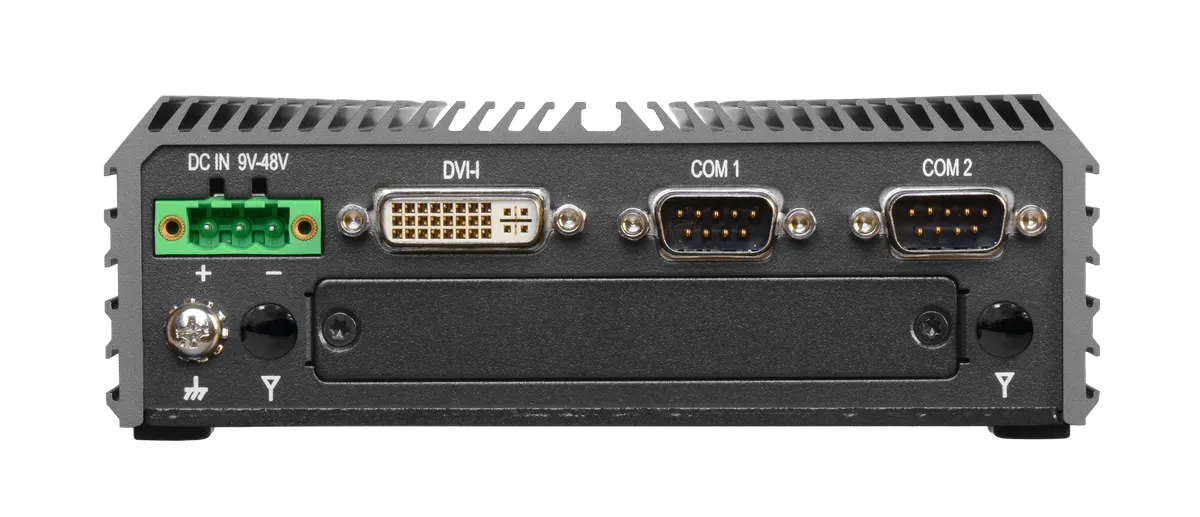

DIN Rail, VESA, or Wall Mount — 9–48 VDC Power
Mounting options — DIN rail, VESA, and wall — cover control cabinets, the back of a display, and machine frames, and the whole unit weighs 0.87 kg.
The 9–48 VDC input runs directly from 12 V, 24 V, or 48 V industrial supplies, with over-voltage, over-current, and reverse power protection built in. A software-programmable watchdog timer (256-level system reset) can recover a hung system unattended.
DA-1100 Questions
What is the difference between the DA-1100-N33 and DA-1100-N42?
How does the DA-1100 stay cool without a fan?
Which operating systems does the DA-1100 support?
How do I mount the DA-1100?
Can the DA-1100 drive multiple displays?
Can ADEK configure a DA-1100 for my application?
