Cincoze Embedded Computers — Every Series, Configured and Supported in the USA
Every Cincoze family in one place — DA to DX fanless box PCs, MD DIN-rail systems, GM/GP GPU platforms, and CRYSTAL panel PCs — configured and supported by US-based engineers with 30+ years in industrial computing.
- Fanless models rated -40°C to 70°C
- 9–48 VDC input on every featured model
- EN 50155, E-Mark & MIL-STD-810 rated models
- Intel N-series up to Core i9 and dual-GPU platforms
Request a Quote
Tell us your application — a US-based engineer will reply within one business day.
One Flagship From Every Cincoze Family
Six starting points across the range — every spec below comes from the datasheet, and every model can be configured with your memory, storage, OS, and expansion.
MIL-STD-810H

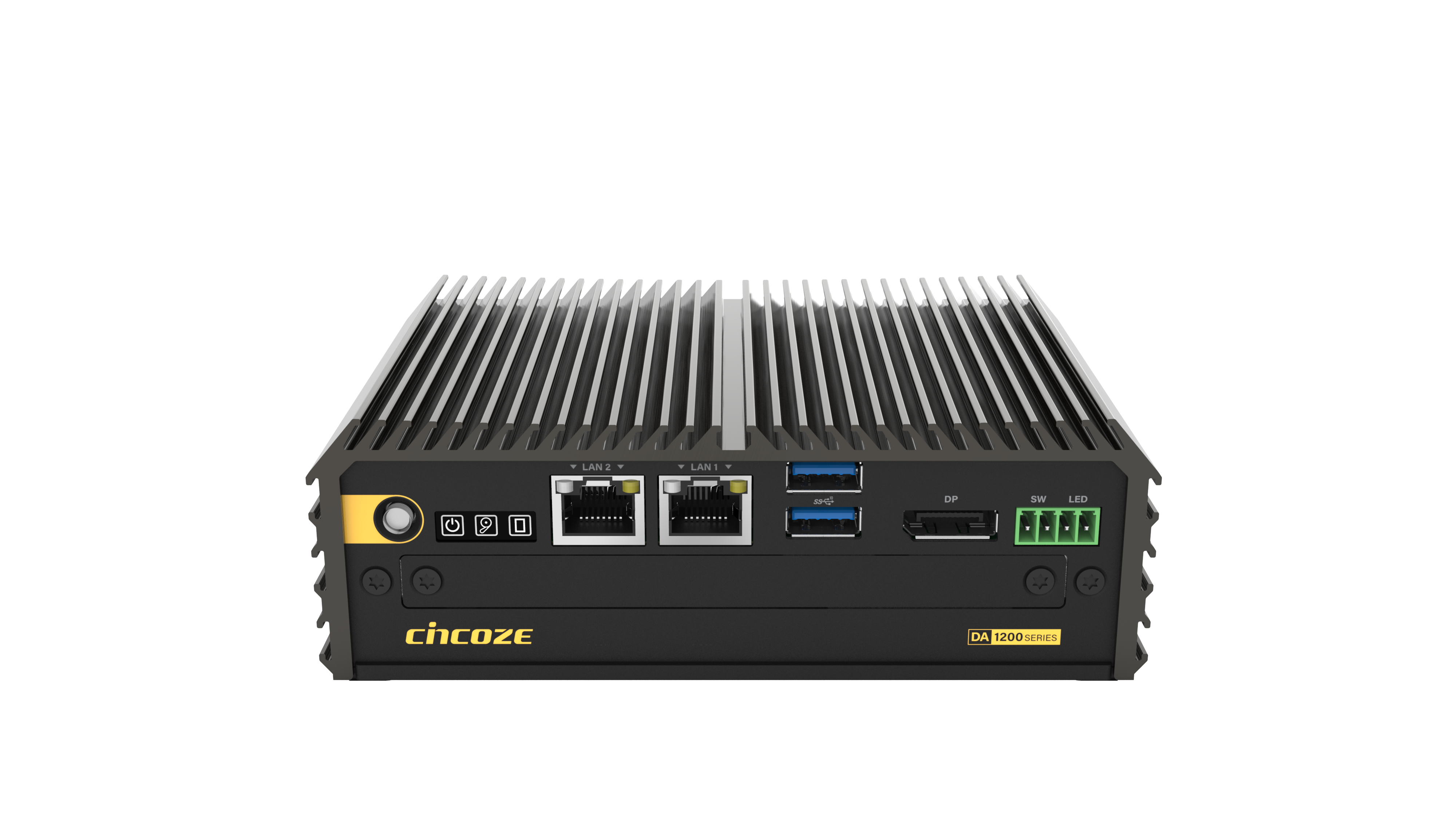

Cincoze DA-1200-N97
Ultra-compact entry-level box PC for gateways, kiosks, and light automation duty.
- Intel N97 4-core, 12 W TDP, up to 3.6 GHz
- -40°C to 70°C fanless
- 2× 2.5GbE LAN, 2× USB 3.2 Gen 2
- 150 × 105 × 52.3 mm, 0.81 kg
EN 50155
Cincoze DI-1200-i7
Power-saving mid-range unit for transit systems, surveillance, and machine control.
- 12th Gen Core i7-1265UE, 10 cores, 15 W
- -40°C to 70°C fanless
- 2× 2.5GbE, 2× RS-232/422/485, 6× USB
- Up to 4 independent displays
MIL-STD-810G

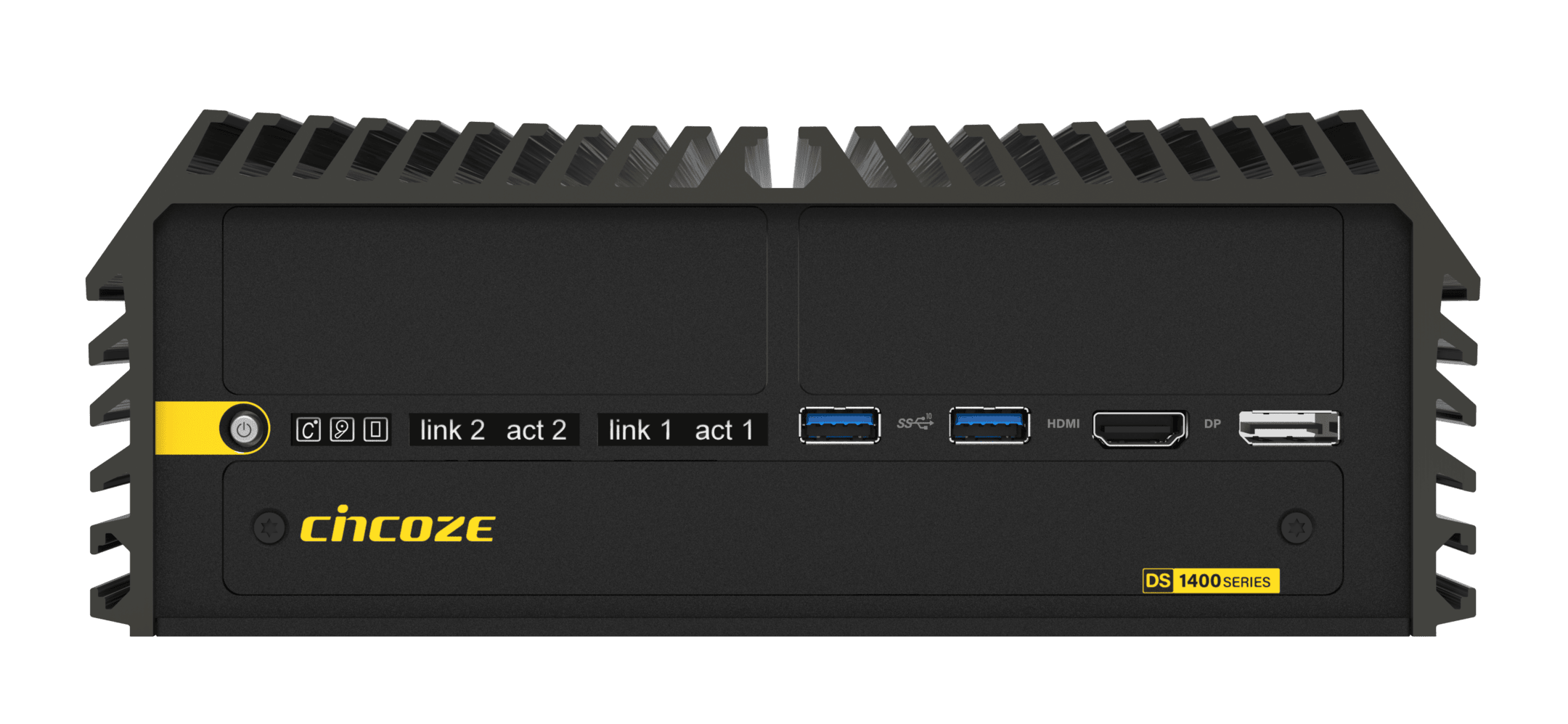

Cincoze DS-1400
Expandable high-performance workhorse for line control and data-heavy edge workloads.
- 12th/13th Gen Intel Core up to i9
- Up to 96 GB DDR5-5600 ECC
- -40°C to 70°C fanless (35 W CPU)
- 2× 2.5" bays + M.2 NVMe, RAID 0/1/5/10
MIL-STD-810G

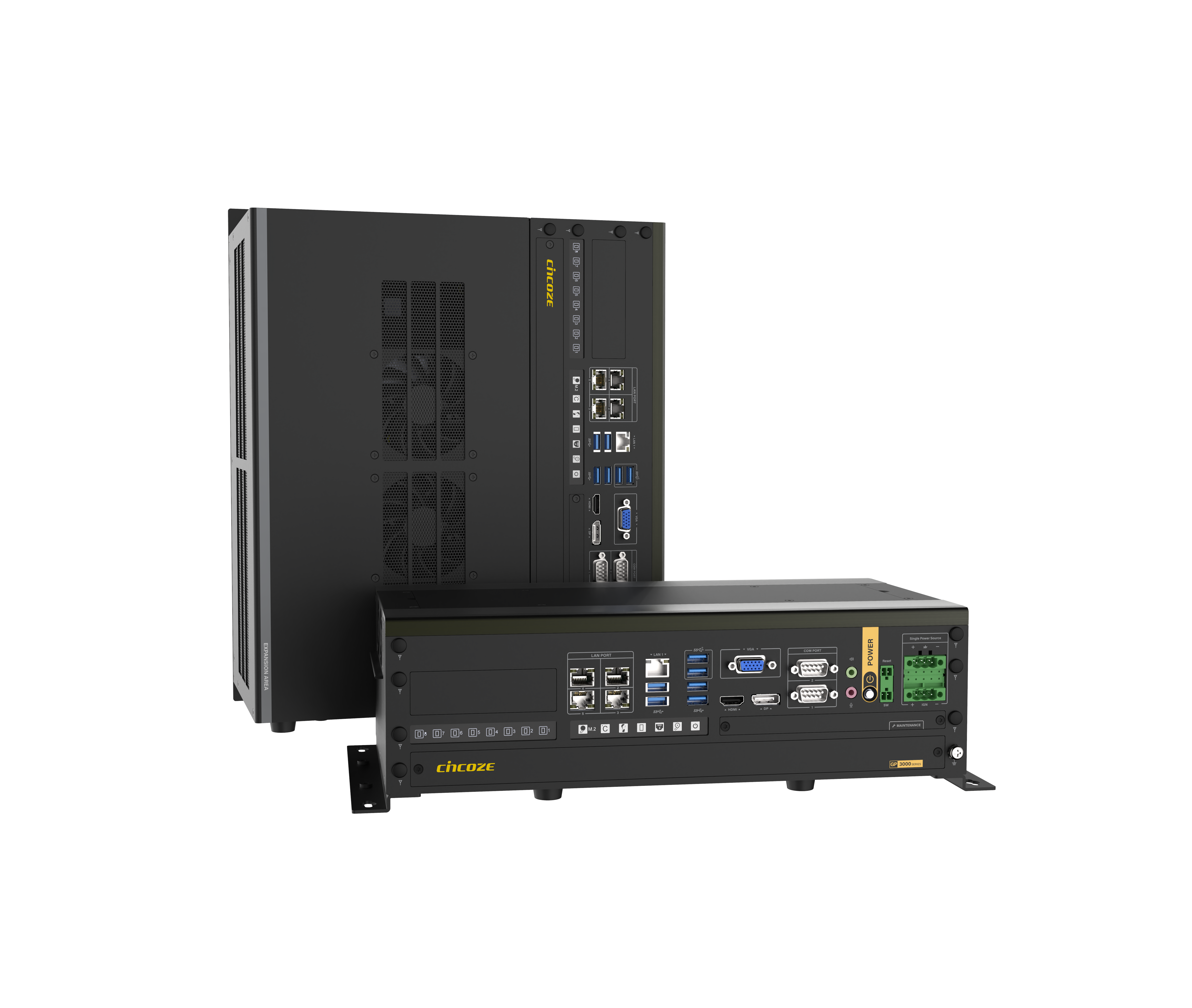

Cincoze GP-3000
Dual full-length GPU platform for machine vision and edge AI inference.
- 2× full-length GPUs via GEB, 600 W GPU budget
- 8th/9th Gen Intel Xeon/Core, ECC DDR4 up to 64 GB
- 5× GbE LAN, 4× hot-swap 2.5" SATA bays
- 720 W total power budget, 9–48 VDC

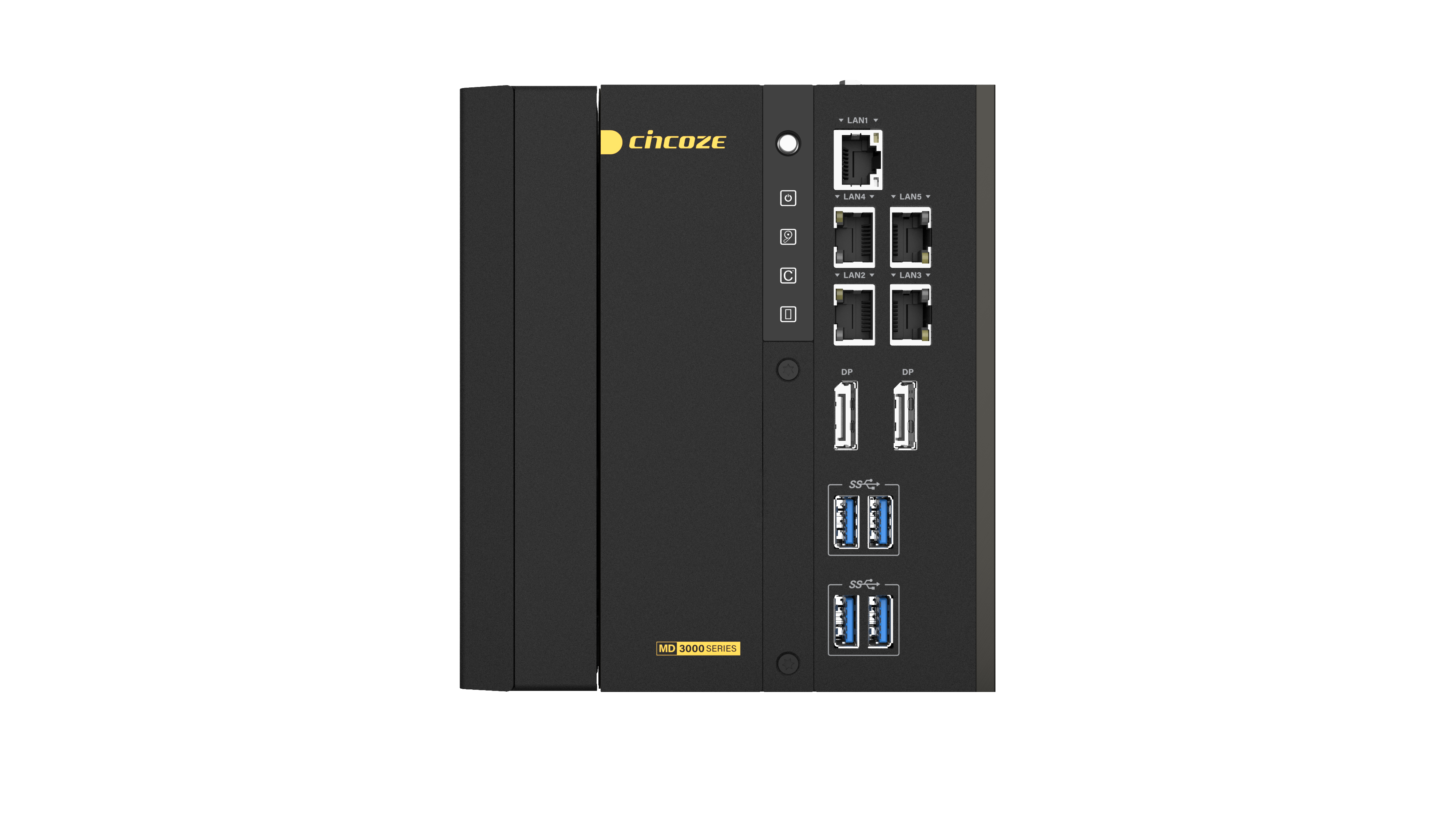

Cincoze MD-3000
DIN-rail-native controller that brings desktop-class Core processing into the control cabinet.
- 12th–14th Gen Intel Core (LGA1700)
- Up to 96 GB DDR5-5600, 2× M.2 NVMe
- -40°C to 65°C, 9–48 VDC
- 5× GbE LAN, 30 Grms shock rating
EN 45545-2

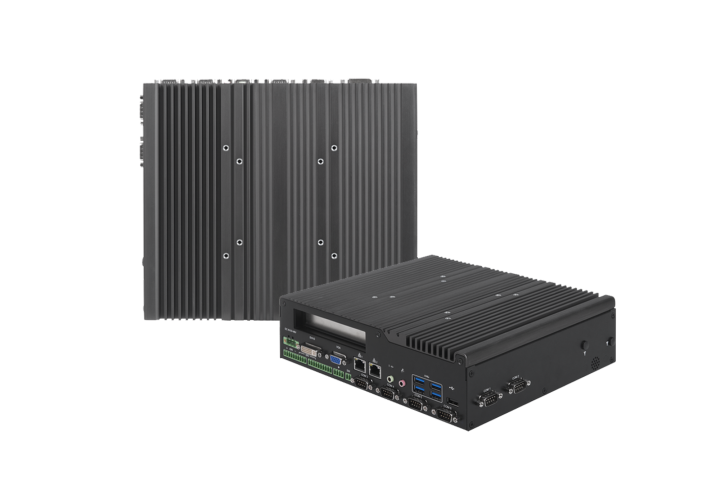

Cincoze P2000
Convertible computer module of the CRYSTAL panel PC line — dock a CDS display or run it standalone.
- Core i3/i5 and Core Ultra 3/5/7 options
- -40°C to 70°C fanless
- Up to 96 GB memory, up to quad displays
- CDS, VESA, DIN-rail, or wall mount
The Cincoze Series Map — Ten Families, One Ladder
| Series | Positioning | Representative Model | CPU Class | Operating Temp |
|---|---|---|---|---|
| DA | Entry performance, basic | DA-1200-N97 | Intel N97, 4-core, 12 W | -40°C to 70°C |
| DC | Entry performance, standard | DC-1200-N42 | Intel Pentium N4200, 4-core | -40°C to 70°C |
| DE | Entry performance, PCIe-expandable | DE-1000 | Intel Atom E3845, 4-core | -25°C to 70°C |
| DI | Mid performance, power-saving | DI-1200-i7 | 12th Gen Core i7, 10-core, 15 W | -40°C to 70°C |
| DS | High performance, PCIe-expandable | DS-1400 | 12th/13th Gen Core, up to i9 | -40°C to 70°C |
| DV | High performance, basic | DV-1100 | Intel Core, up to i9 | -40°C to 70°C |
| DX | High performance, standard | DX-1200 | Intel Core, up to i9 | -40°C to 70°C |
| MD | High performance, DIN-rail scalable | MD-3000 | 12th–14th Gen Core, up to i9 | -40°C to 65°C |
| GM / GP | GPU computing, MXM to dual full-length | GP-3000 | Intel Xeon/Core + dual GPUs | -40°C to 70°C (35 W TDP) |
| P1000 / P2000 | CRYSTAL convertible panel PCs | P2000 | Core i3/i5, Core Ultra 3/5/7 | -40°C to 70°C |
What Sets the Cincoze Platform Apart
CDS: One Panel PC, Two Swappable Modules
Cincoze's Convertible Display System (CDS) splits a panel PC into a display module and a computer module. The CS-100 sunlight-readable display series spans 8.4" to 24" with capacitive touch and an IP65 front, and the P1000/P2000 convertible computers dock behind it to complete the system.
- Upgrade compute independently — replace the computer module without unmounting the display.
- Scale performance — P2000 supports Core i3/i5 and Core Ultra 3/5/7 CPUs with up to 96 GB of memory.
- Mount anywhere — CDS, VESA, DIN-rail, and wall mounting are built into the P-series.
CMI, CFM & MEC: I/O That Matches the Job
Instead of one fixed I/O plate, many Cincoze systems accept plug-in expansion modules: CMI (Combined Multiple I/O) for additional LAN and display I/O, CFM (Control Function Module) for functions like power ignition sensing, and MEC (Mini-PCIe) for expansion cards.
- DS-1400 — 4× CMI + 1× CFM slots and 3× Mini-PCIe on top of two 2.5" SATA bays and M.2 NVMe storage.
- DI-1200-i7 — two CMI slots and a CFM slot in a 203-mm-wide chassis.
- Ignition sensing — 12 V/24 V selectable via the optional CFM module (with delay-time management on the DS-1400), for vehicle and rolling-stock installs.
Built for the Ugly End of the Temperature Chart
Cincoze fanless designs cool through the enclosure, not a fan grille: extruded-aluminum housings conduct CPU heat straight to external fins, so fanless models on this page run from -40°C to 70°C with no airflow through the electronics.
- Wide-range DC power — 9–48 VDC input on every featured model, with over-voltage, over-current, and reverse-power protection on the featured box PCs.
- Shock and vibration — MIL-STD-810G/H compliance on models like the DS-1400, DI-1200-i7, and GP-3000; the MD-3000 is rated to 30 Grms shock and 3 Grms vibration.
- Rail and vehicle certifications — EN 50155 and EN 50121-3-2 on the DI-1200 and DS-1400; E-Mark on the DI-1200-i7 and GP-3000.
Cincoze Buying Questions, Answered
Which Cincoze series should I start with?
How do fanless Cincoze computers stay cool?
Can ADEK configure memory, storage, and the operating system?
What certifications do Cincoze computers carry?
What is the CDS Convertible Display System?
Do you support OEM and volume projects?
Find the Right Cincoze in One Conversation
Send your workload, environment, and I/O list — an engineer at our New Hampshire office will reply within one business day.
